| Fabricant | EMAG |
| Type | VSC 250 DS |
| Année de fabrication | 2004 |
| Commande | SIEMENS 840 D |
| Poids de la machine env. | 7500 |
| Puissance totale requise | 35 |
| Diamètre de tournage | 250 |
| Longueur de coupe | 100 |
| Espace requis approximatif |  |
turning diameter: 250 mm
turning length: 100 mm
control: SIEMENS 840 D
total power requirement: 35 kW
weight of the machine ca: 7500 kg
dimensions of the machine ca: m
E M A G (Germany)
Vertical CNC Controlled Hard Turning and Grinding machine
with tool turret and workpiece handling System

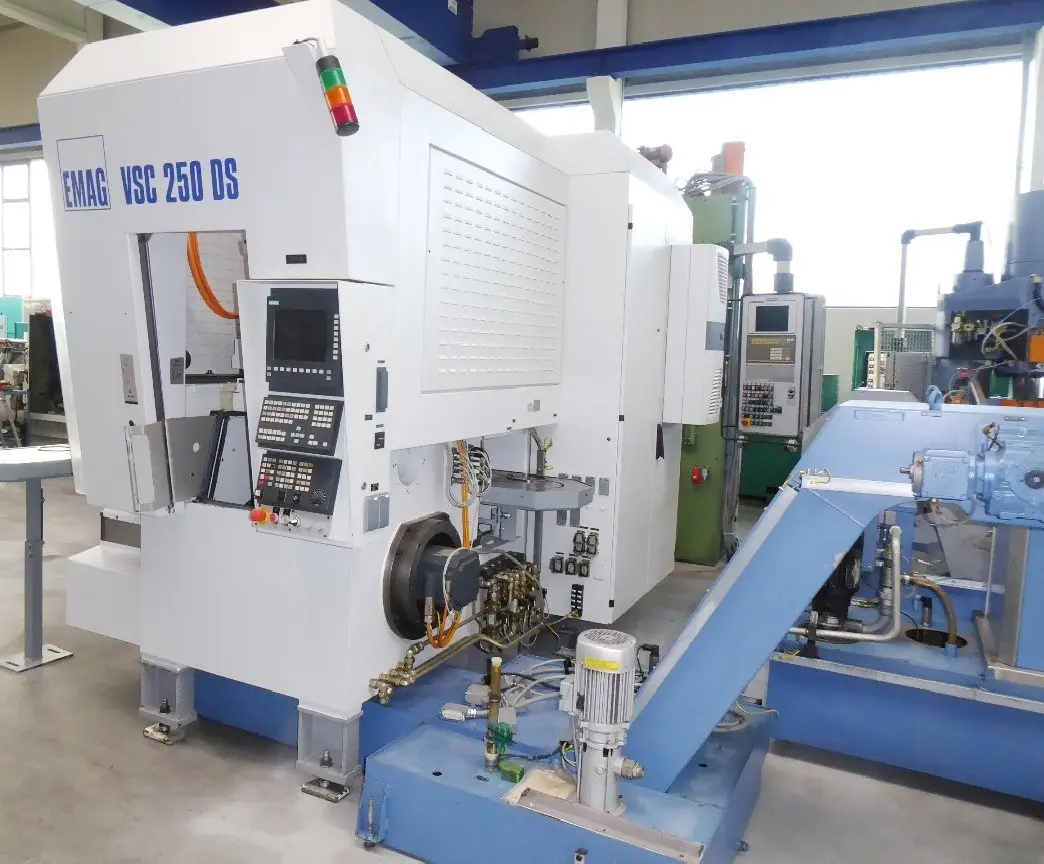

Model VSC 250 DS Year 2004 # M7 28.69324
_______________________________________________________
Turning Ø, max. 250 mm
Turning length internal / external 100 mm
Workpiece length min./max. 29 – 100 mm
6-positon tool turret Ø / swing-Ø 480/790 mm
Workpiece spindle Slide travel, X / Z / stroke 680 / 400 / 200 mm
Feed rate / Quick feed X/Z 45/30 m/min.
Feed force X/Z 5,5/11 kN
Spindle speed 4.300 / 6.000 rpm
Spindle drive 28 kW
Total electrical load, approx. 35 kW - 400 V - 50 Hz
Weight, approx. 7,500 kg
Accessories / Special Features:
CNC – Continuous Path Control SIEMENS Model 840 D, with colour monitor,
graphics, menu-supervised dialogue programming, and all the usual
options, cycles and subprograms, etc.
Hexagon Tool turret head with 6 tool positions (Ø 40 mm) without
motorized tools posts, two positions T 3 u. T 6 equipped with grinding
spindles with 42.000 rpm and with 18.000 rpm, using CBN discs resp.
regular grinding tools
Workpiece handling device with WP transportation frames and circulation
system and pick-up and unloading of finished parts directly through the
motor spindle which is equipped with a hydraulic 3 jaws chuck make SMW
Autobloc with membrane clamping and clamping control system.
MARPOSS MIDA Measuring Probe for measuring blank parts a. the
finished parts
NORGREN air measuring system, hydraulic weight compensation of spindle,
Main elements of machine are temperature stabilized by a coolant system
made by HYFRA

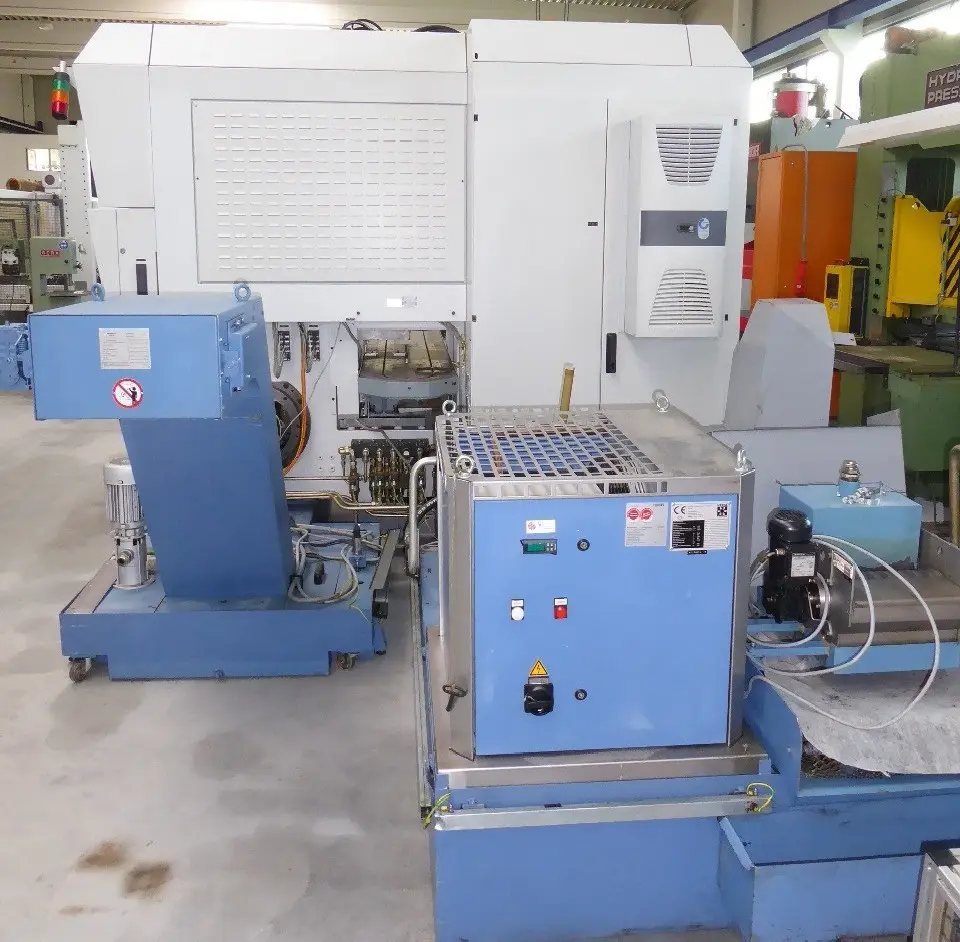

Recooler for the grinding coolant sitting on a large Coolant device
consisting of SEITZ Paper Band filter and a mobile Chipconveyor,
Magnetic separator, Centrallubrication, etc.
Vertical CNC lathes offer a thermo-resistant construction (chips do not fall
onto the machine bed),fast workpiece change times (pick-up system through
the main spindle) and a ridged tool arrangement,which also allows unrelated
machining work, like hard turning or grinding process on the same machine.
Condition : Good. Machine can soon be inspected under power.
Delivery : Ex stock, as inspected.
Payment : Net, after conclusion of contract.
