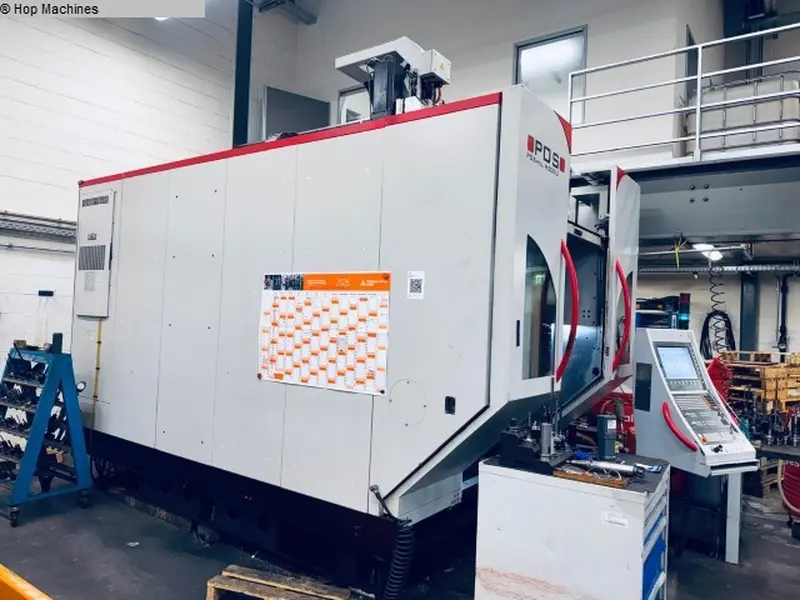

| الصانع | PossMill |
| النوع | H800U |
| سنة الصنع | 2018 |
| مسار x | 670 mm |
| مسار y | 820 mm |
| مسار z | 600 mm |
| إجمالي احتياجات الطاقة | kW |
| التحكم | CNC |
| وزن الآلة | 20000 kg |
| المساحة المطلوبة | m |
| وقت التسليم | Sofort |
| السعر |
Auf Anfrage |
Maschinenart: Bearbeitungszentrum - Universal

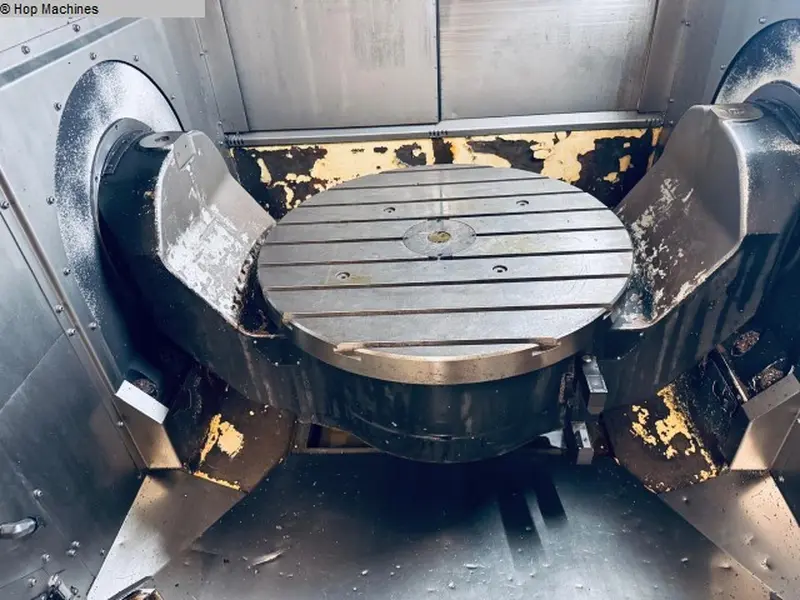

• Swivel range (B): -120° to +120°
• Rotary table (C): 360° infinitely variable
• Tool changer: 96 positions, HSK-A63, rear-mounted with display
• Measuring systems: Heidenhain linear scale (X/Y/Z) with purge air; Heidenhain
rotary measuring system
• POS kinematic module incl. reference ball
• POS contour protection
• Control cabinet cooling: active air-to-air
• Spindle cooler: regulated
• Oil cooling for 4th/5th axes: regulated
• Network and USB connections
• Automatically controlled crane loading hatch
• Coolant pump on the head via M functions
• Safety door for tool changes
• Interfaces for table media: 3 hydraulic connections and 1 air connection in
the center of the table

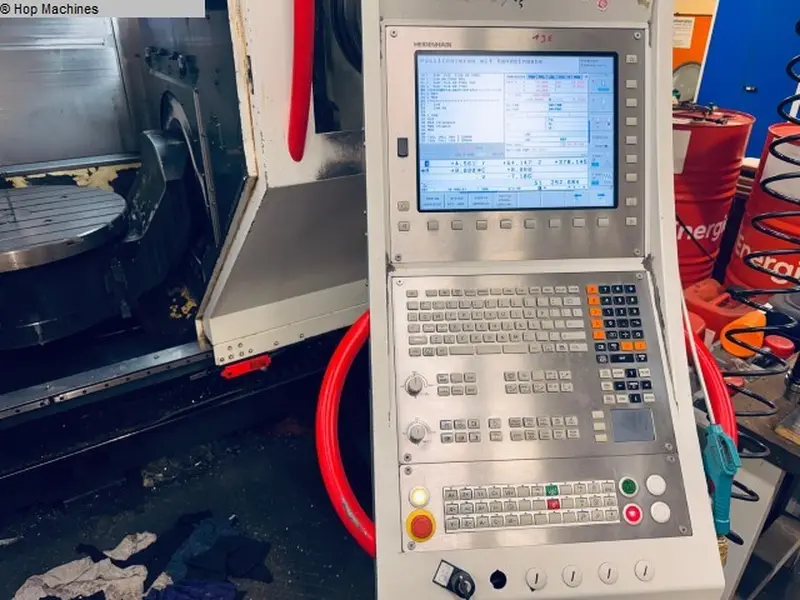

• Mobile electronic handwheel
• Operating hours: 22,996 total; 12,971 program hours
Additional equipment
• External chip mixer/chip conveyor
• Chip evacuator with special pump
• Water pistol (rinsing)
• Air at the spindle
• Electromechanical oil/coolant separator
• Automatic coolant level monitoring
• Operating status indicator (stack light)
• Hydraulic power unit, incl. control via M function
