Обрабатывающий центр - вертикальный FEHLMANN PICOMAX 60 CNC, г.в. 1999

CONTROLS

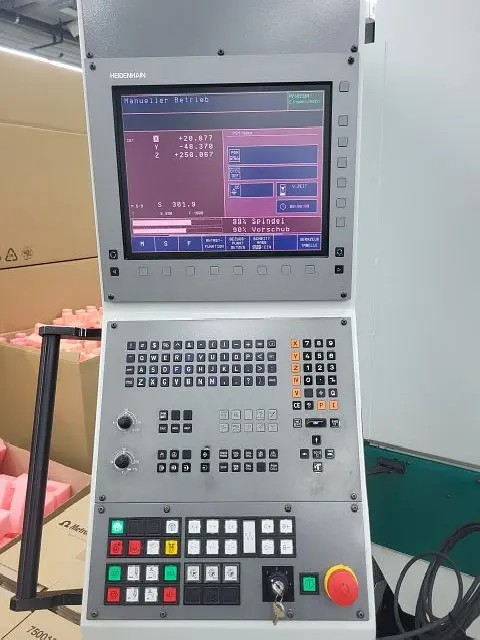

  CNC controls HEIDENHAIN TNC 426

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  X-axis travel: 500 mm
  Y-axis travel: 350 mm
  Z-axis travel: 610 mm

TABLE
  table surface (left-right): 920 mm
  table surface (front-back): 380 mm

SPINDLE / HEAD
  spindle revolutions (min): 50 /min
  spindle revolutions (max): 18000 /min
  tool fixture: ISO SK 30

TOOL MAGAZINE
  number of positions: 24

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 2000 mm
  space requirements -front/back-: 1700 mm
  total height: 3000 mm
  total weight approx.: 3200 kg

ATTACHMENTS
  chip conveyor: no
  coolant unit: yes
  through spindle coolant attachment: no
  closed cabin: yes
  European CE standards: yes
