CONTROLS
SIEMENS SIMATIC OP7
OVERALL SPECIFICATIONS (COIL LINES)
sheet width max.: 246 mm
sheet thickness max.: 1 mm
coil weight max.: 2.5 to

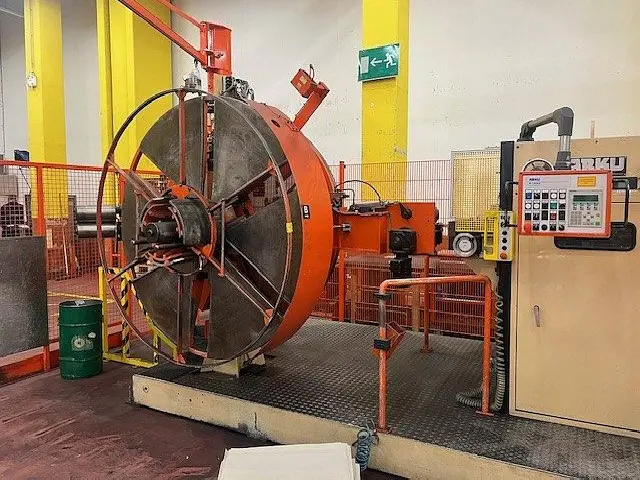

DECOILER
design: twin reel
sheet width max.: 300 mm
sheet width (min): 50 mm
coil weight max.: 2.5 to
mandrel expansion range from: 370 mm
mandrel expansion range up to: 430 mm
Belt width: 83.3mm to 246.0mm,
Belt thickness: 1.0mm
Feed lengths: 155.0mm to 1178.0mm

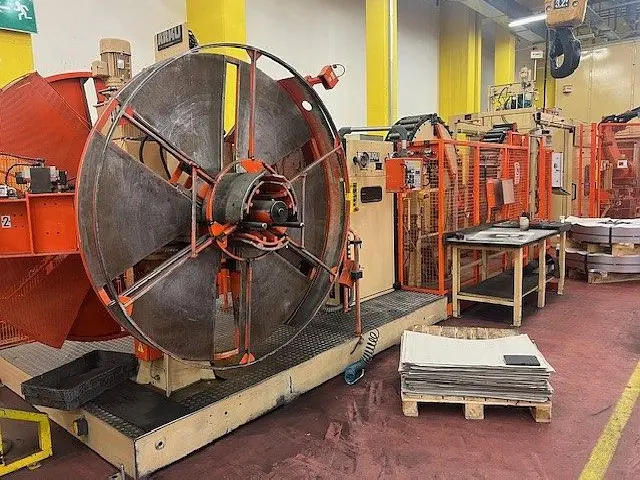

Reversible reel:
- Load capacity up to 2500 daN per side
- Spreading range 370 - 430 mm
- Jaw length max. 370 mm (radian dimension)
with clearance for crane hooks, with hardened
guides for spreading.
.
- with screw-on segments 470 - 530 mm
- coil outside diameter up to 1650 mm
- strip width 50 - 300 mm
Coil diameter:
outside 1650 mm
inside from 370 - 430 mm
with screw-on segments from 470 - 530 mm
Strip width:
from 50 - 300 mm
Strip thickness:
1.0 mm
Tensile strength:
max. 400 N/mm²
