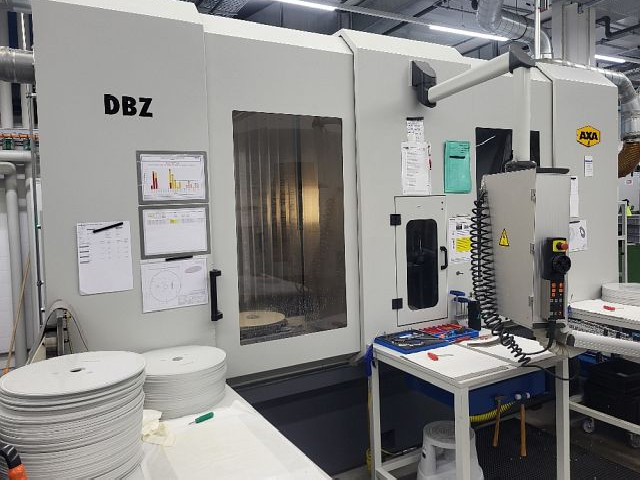

Обрабатывающий центр - вертикальный AXA DBZ

CONTROLS

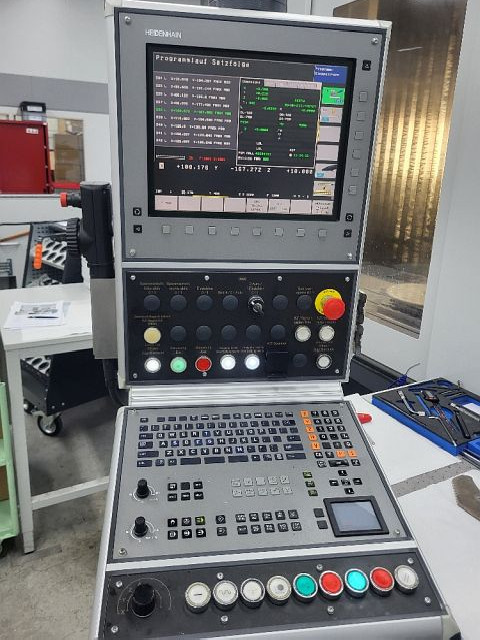

  CNC controls HEIDENHAIN ITNC 530C

BASIC DESIGN
  basic design: moving column

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  .. among of them simultaneous CNC axes: 3
  X-axis travel: 750 mm
  Y-axis travel: 500 mm
  Z-axis travel: 600 mm

TABLE
  table surface (left-right): 1000 mm
  table surface (front-back): 500 mm
  workpiece load (max): 800 kg

SPINDLE / HEAD
  spindle revolutions (max): 10000 /min
  tool fixture: ISO SK 40

TOOL MAGAZINE
  number of positions: 22

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 6000 mm
  space requirements -front/back-: 4500 mm
  total height: 2800 mm
  total weight approx.: 8000 kg


Machine for shuttle operation
2xX750mm,

Machine in good and well-maintained condition
Has only processed aluminum or plastic

Equipment:
- various tool holders
- each side with 3R clamping system (see photo)
- Workspace light
