Токарный станок с ЧПУ BOEHRINGER ND 200

CONTROLS
  CNC controls SIEMENS SINUMERIK 840 D

BASIC FUNCTIONS

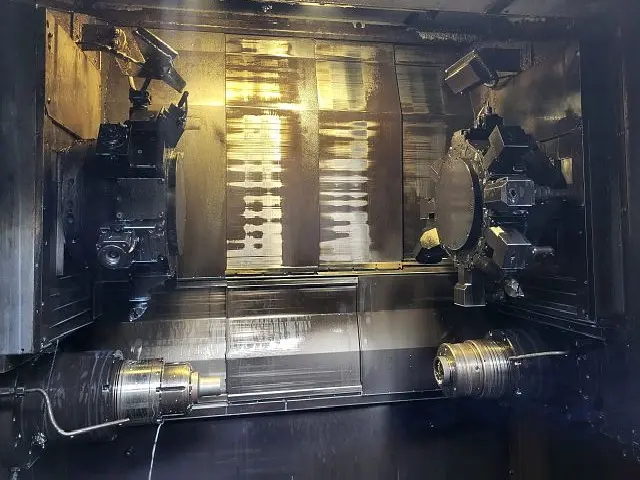

  number of spindles: 2
  number of x/z slides: 2
  number of turrets: 2
  live positions: yes
  number of c-axes: 2

WORKING RANGE TURNING
  swing diameter (max): 600 mm
  turning diameter (max): 290 mm
  bar diameter (max): 82 mm
  worpiece length max.: 850 mm

MAIN SPINDLE
  spindle revolutions (max): 4500 /min
  spindle bore diameter: 65 mm
  c-axis: optional

COUNTER SPINDLE
  spindle revolutions (max): 4500 /min
  c-axis: yes

X/Z SLIDE
  tool fixture: Turret

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 6000 mm
  space requirements -front/back-: 2300 mm
  total height: 2500 mm
  total weight approx.: 11000 kg
