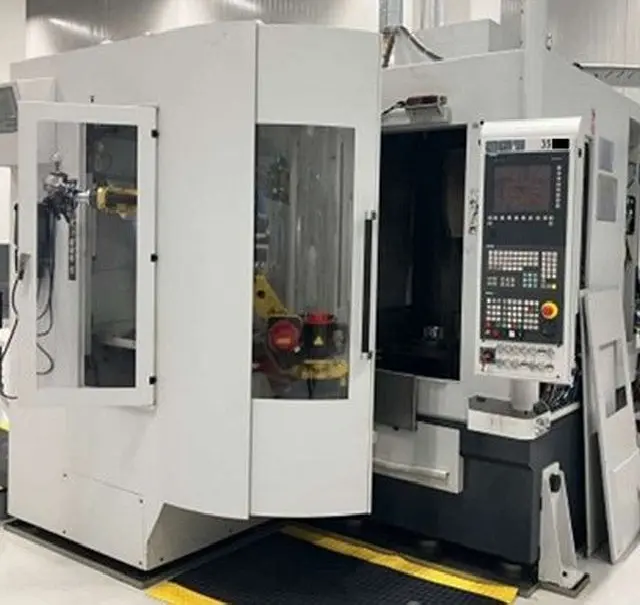

Обрабатывающий центр - вертикальный CHIRON DZ 08 P+

CONTROLS
  CNC controls SIEMENS 840D SL 4.8

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 4
  X-axis travel: 210 mm
  Y-axis travel: 270 mm
  Z-axis travel: 360 mm

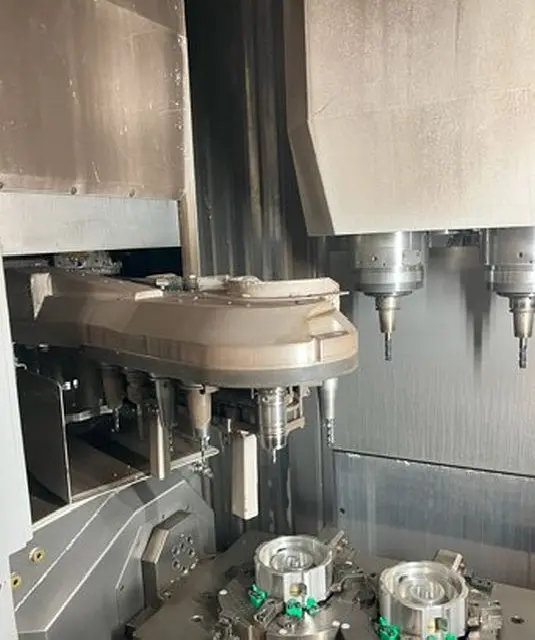

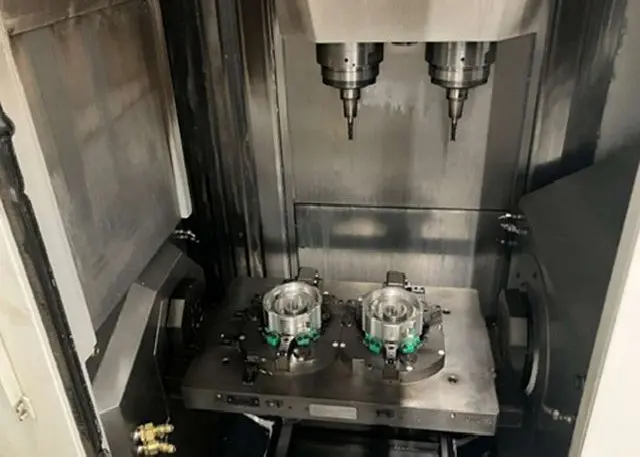

SPINDLE / HEAD
  spindle revolutions (max): 40000 /min
  tool fixture: HSK A40

TOOL MAGAZINE
  number of positions: 72

AUTOMATIC WORKLOAD EQUIPMENT
  workpiece manipulator: articulated robot
  number of store positions: 36

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

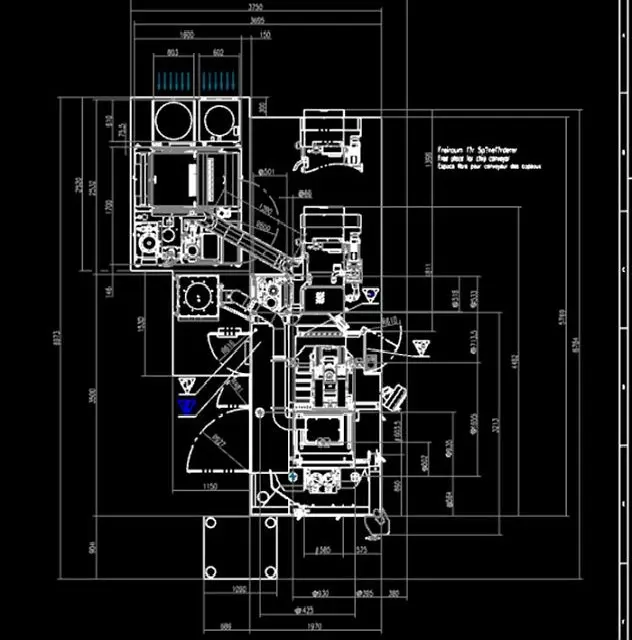

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 8500 mm
  space requirements -front/back-: 2500 mm
  total weight approx.: 6000 kg

ATTACHMENTS
  central lubrication system: yes
  chip conveyor: yes
  coolant unit: yes
  through spindle coolant attachment: yes
  European CE standards: yes


-Siemens tool management with retooling
-Fanuc Automation Robot M-10IA
-Operating hours: 7,200 h - of which spindle 1 original, spindle 2: 3896 h
