Обрабатывающий центр - вертикальный CHIRON MILL 2000 HIGH SPEED

CONTROLS

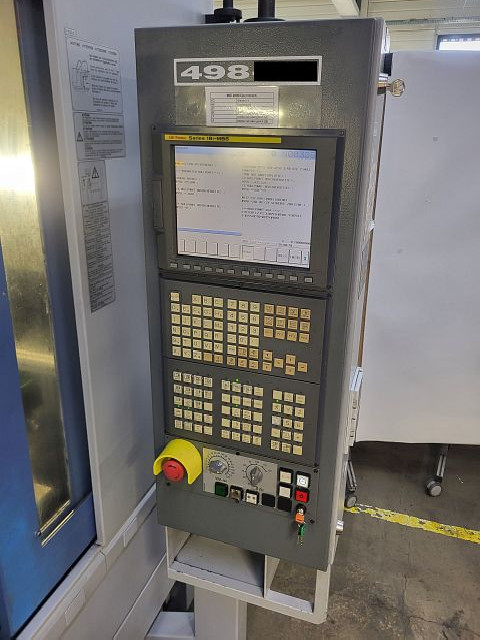

  CNC controls FANUC 18I MB

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  X-axis travel: 2000 mm
  Y-axis travel: 500 mm
  Z-axis travel: 550 mm

SPINDLE / HEAD
  spindle revolutions (max): 9000 /min

TOOL MAGAZINE
  number of positions: 24
  tool diameter max.: 75 mm
  - with free neighbour positions: 160 mm
  tool length max.: 320 mm
  tool weight max.: 4 kg
  tool changing time: 15 s

AUTOMATIC WORKLOAD EQUIPMENT
  number of store positions: 24

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 5357 mm
  space requirements -front/back-: 3202 mm
  total height: 2500 mm


including chip conveyor
Duty cycle 53'700h
Spindle hours 26'400h

Accessories:
Röhm double clamps
Torsion springs for tool holders 50 pieces
Tool holder 5 pieces
Tribos-S Polygon chuck with diameter 6,8,10,12,16
Lathe chuck diameter 12,20,32
SK40 Tightening bolt with hole
