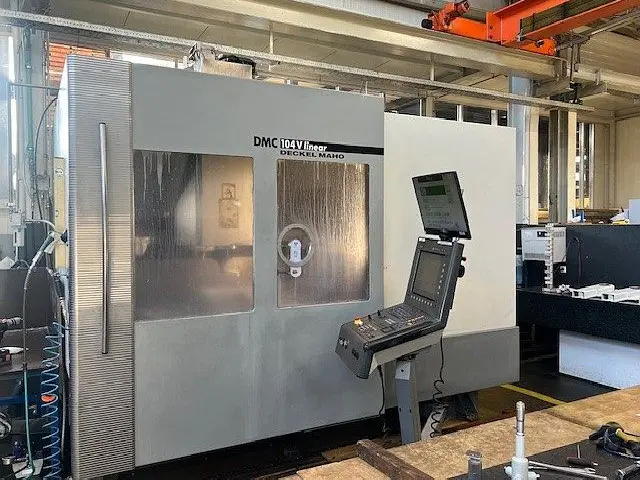

Обрабатывающий центр - вертикальный DECKEL MAHO DMC 104 V

CONTROLS

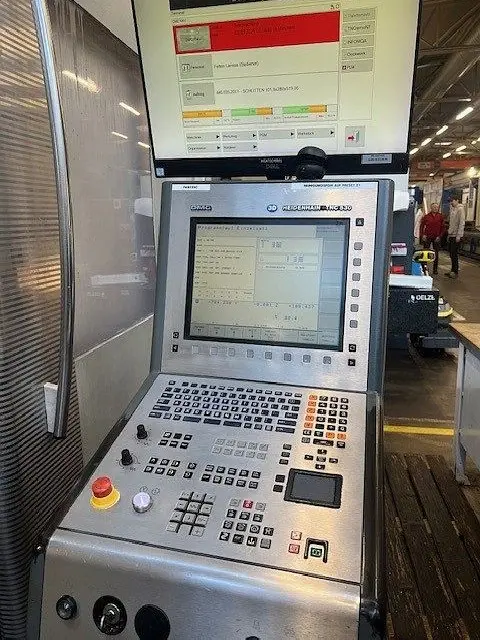

  CNC controls HEIDENHAIN TNC 530

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  X-axis travel: 1040 mm
  Y-axis travel: 600 mm
  Z-axis travel: 500 mm

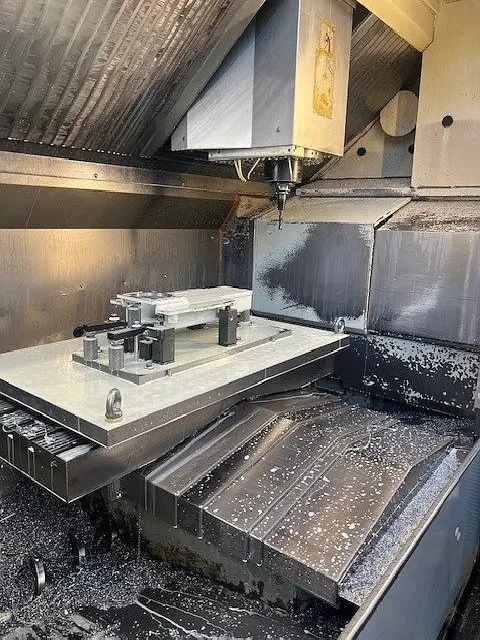

TABLE
  table surface (left-right): 1250 mm

SPINDLE / HEAD
  spindle revolutions (max): 12000 /min
  tool fixture: ISO SK 40
  drive power: 40 kW

AXIS DRIVES
  rapid traverse X: 70000 mm/min
  rapid traverse Y: 40000 mm/min
  rapid traverse Z: 40000 mm/min

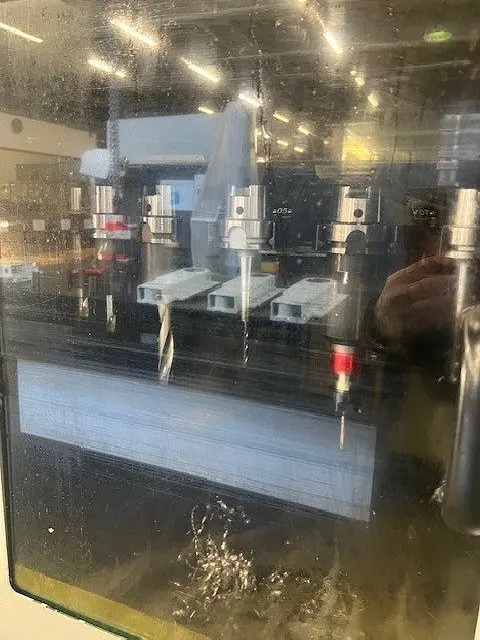

TOOL MAGAZINE
  number of positions: 30
  tool diameter max.: 100 mm
  - with free neighbour positions: 140 mm
  tool length max.: 300 mm
  tool weight max.: 7 kg

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 2650 mm
  space requirements -front/back-: 2700 mm
  total height: 2500 mm
  total weight approx.: 9940 kg

ATTACHMENTS
  chip conveyor: yes
  coolant unit: yes
  through spindle coolant attachment: yes
  closed cabin: yes
  European CE standards: yes



-13000 operating hours

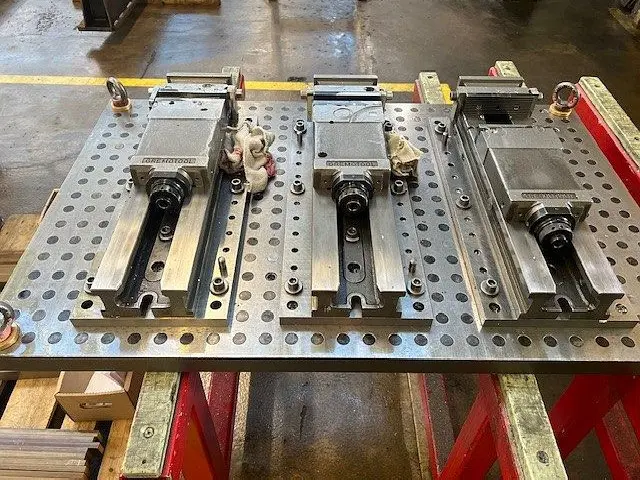

-Tool clamping device including 3 vices

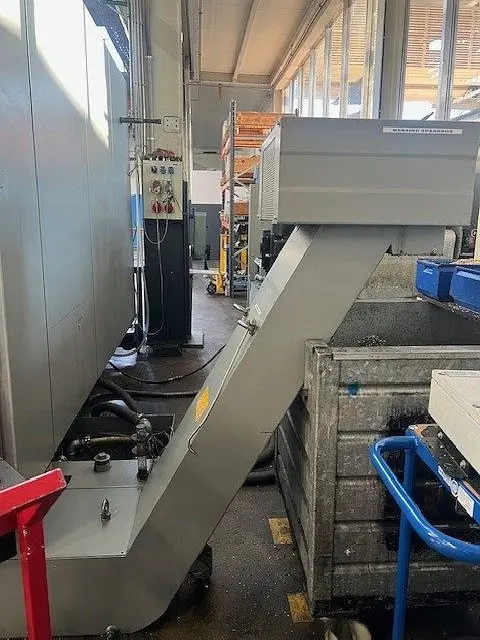

-chip conveyor
-belt filter
