| Производитель | DMG GILDEMEISTER |
| Модель | SPEED 12-7 linear |
| Год выпуска | 2004 |
| Конус шпинделя | ER-Spannzangen oder ähnliche Systeme. |
| Наработка | 153199 |
| Инструмент с приводом | 4-6, für Fräs-, Bohr- und Gewindeschneidoperationen. |
| Кол. инструмента | bis zu 20 (davon einige angetrieben). |
| Состояние | Gebraucht |

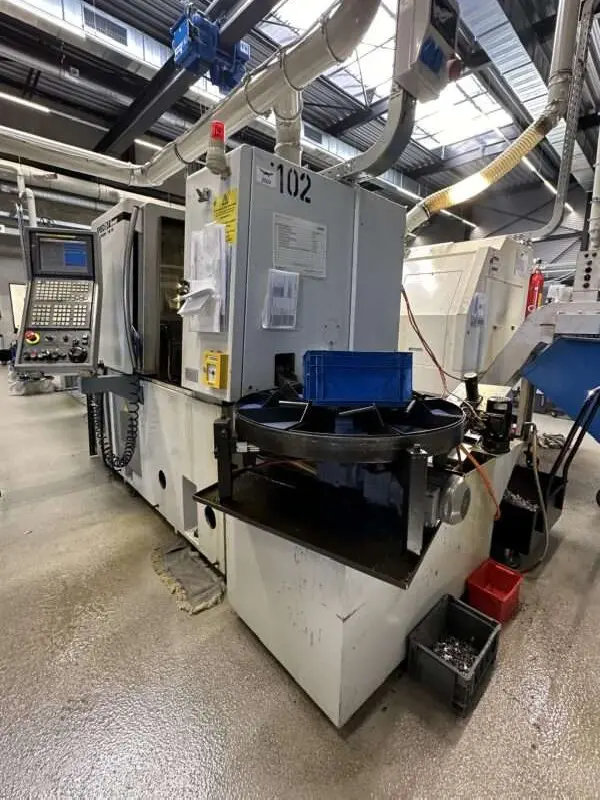

DMG Gildemeister CNC sliding head lathe SPEED 12-7 linear
Year 2004
DMG (now DMG MORI) is a high-precision CNC lathe that was specially developed for machining small workpieces. It belongs to the category of sliding headstock lathes and offers excellent dynamics and accuracy thanks to linear drive technology.
Machine number: 2001-0129
Machine duty cycle: 153199 hrs.
Machine automatic: 120054 h
Customs tariff number / commodity tariff number: 84581141
Manufacturer: DMG Gildemaster
Country of manufacture: Italy
CNC control FANUC 16i-TB with 7 axes
CE declaration of conformity
Technical data
– Number of axes : 7
– Number of spindles : 2

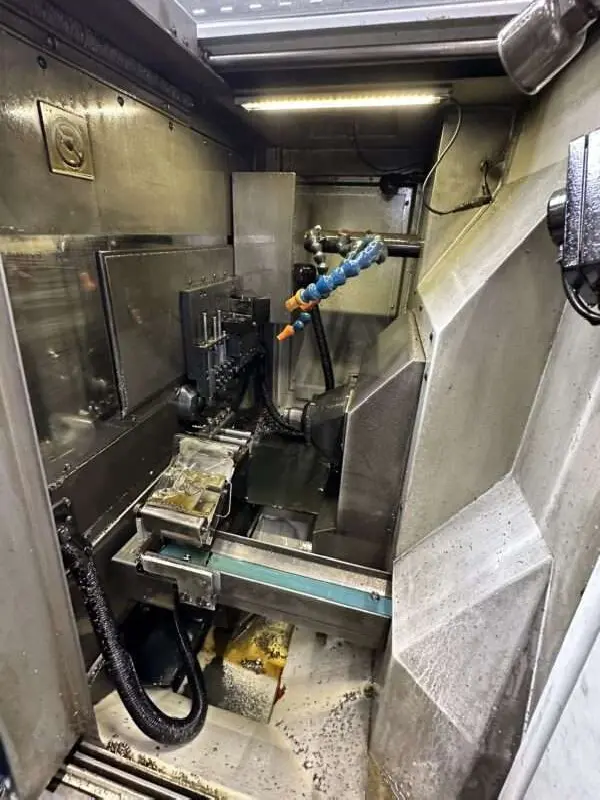

X1 axis: transverse movement of the main slide (main spindle).
Z1 axis: longitudinal movement of the main slide (main spindle).
Y1 axis: Vertical movement, often for eccentric machining.
C1 axis: Rotary movement of the main spindle (indexing/position control).
X2 axis: Transverse movement of the counter spindle.
Z2 axis: Longitudinal movement of the counter spindle.
C2 axis: Rotary movement of the counter spindle.
Travels:
X1 axis: ±30 mm
Z1 axis: 120 mm
Y1 axis: 195 mm
X2 axis: 180 mm
Z2 axis: 180 mm
MAIN SPINDLE
– Max. Bar diameter : 12 (15) [mm]
– Travel distance : 120 [mm]
– Spindle speed : 12000 [rpm]
– Spindle drive power : 3.7 [kW]
– Torque : 6Nm
COUNTER SPINDLE
– Max. Bar diameter : 12 (15) [mm]
– Spindle speed : 12000 [rpm]
– Spindle drive power : 3.7 [kW]
– Torque : 6Nm
Driven tools:
Power of the tool drives: 1.1 kW
Max. Speed: 6,000 rpm
Tools:
Number of tools: up to 20 (some of which are driven).
Driven tools: 4-6, for milling, drilling and tapping operations.
Tool holder: ER collets or similar systems.
Back machining on the rear side 4 stations
Bar loading magazine FMB minimag /3200 / A
Year 2003
Machine number: 23-161 032
Bar diameter : 0,8 – 18 [mm]
bar length : 3200 [mm]
Loading time : approx. 22 sec (with rods of 3200 mm)
Small extinguishing system / object extinguishing systems Kraft and Bauer
Operating manual
Parts separator (to ensure traceability through random sampling for quality control)

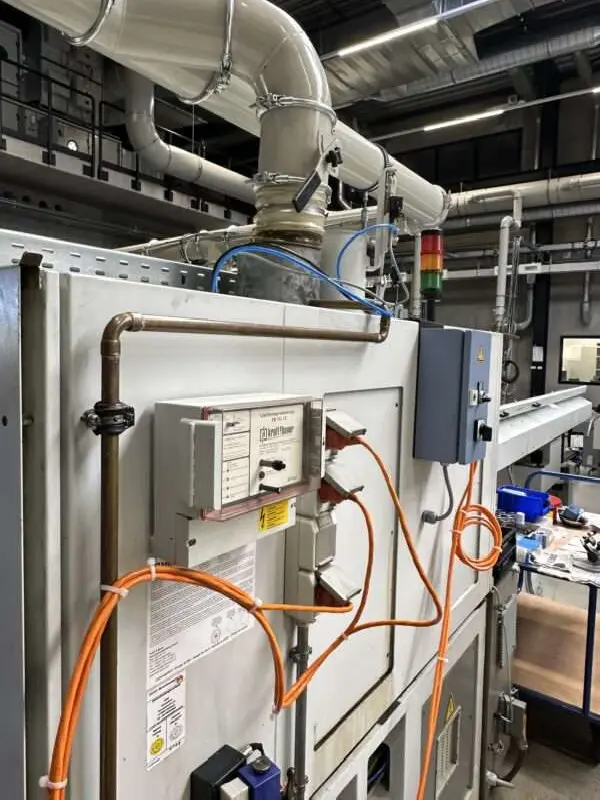

Chip flushing system
Advantages of chip flushing systems:
– Downtimes caused by chips are minimized
– Ideally suited for all materials
– The degree of utilization of the machine tool increases
– Longer tool life due to larger coolant volume
and lower coolant temperature
– Employees are relieved of unproductive ancillary activities
WEIGHT AND DIMENSIONS
Machine dimensions: approx. 2043 x 1200 x 1800 [mm]
Machine weight: approx. 2200 [kg]
Loading magazine dimensions: approx. 4400 x 500 x 1400 [mm]
Weight of loading magazine: approx. 550 [kg]
The machine can be inspected by appointment.
Subject to changes and errors in the technical data and information as well as prior sale!
