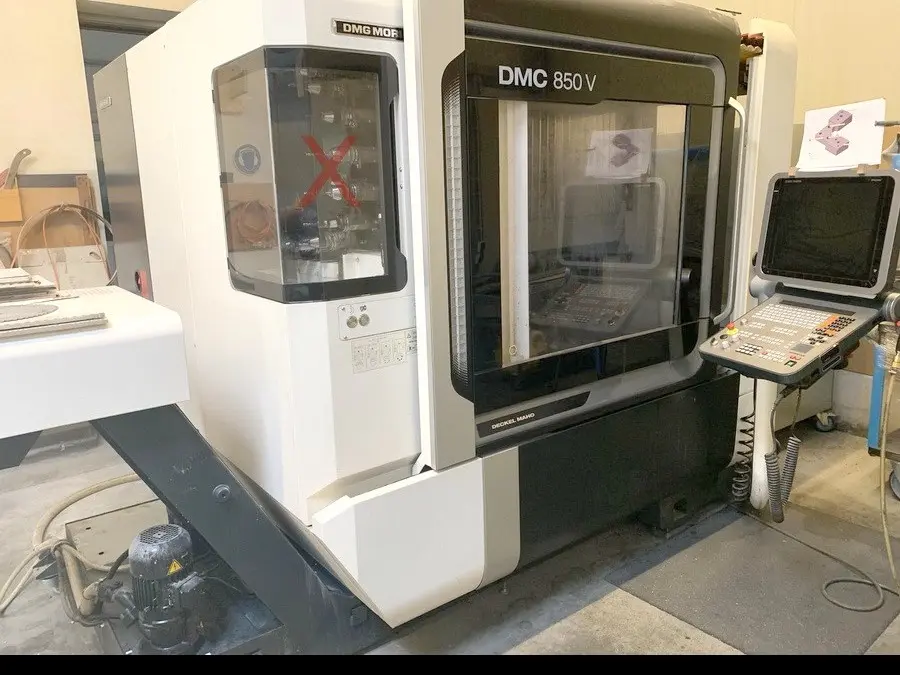

Обрабатывающий центр - вертикальный DMG MORI DMC 850 V New Design 2015

x-travel: 850 mm
y-travel: 520 mm
z-travel: 475 mm
Control: TNC 640 Ergoline Heidenhain
Main spindle:
turning speed range - main spindle: 20 - 14000 min/-1
power capacity - main spindel: 145 / 115 kW
max Torque: 121 / 84 Nm
tool taper: SK 40 DIN69871
work table:
table surface area: 1100 x 570 mm
max table load: 1000 kg
work height max: 800 mm
tool magazin:
number of toolpositions: 30 pos.
tool taper: SK 40 DIN69871
max tool diameter: 80 / 130 mm
max tool length: 300 mm
change-time chip to chip: 59 sec
feeds:
rapid traverse X / Y / Z : 36 m/min
feed speeds: max 36000 mm/min
feed power: 65 kN
Accelaration: 5 m/s²
total power requirement: - kW
weight of the machine ca: - t
dimensions of the machine ca: 55 x 35 x 28 m
Documents:
Chip conveyor:
Coolantsystem:
Coolant-Air-Blast-Change-Over:
direct travel-measuring-system:
Spray gun:
elektr hand wheel:
Tool Magazine:
work light:

CNC-Machiningcenter Vertical
DMG MORI - DMC 850 V New Design

- Operating-Hours: Power-On: ca. 5.700h / Spindleruntime: ca. 2.200h
- WITHOUT tools / WITHOUT Clamping-Units
