Обрабатывающий центр - вертикальный DOOSAN DNM 5700, г.в. 2021

CONTROLS
  CNC controls HEIDENHAIN TNC 620

BASIC DESIGN
  basic design: moving column

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  .. among of them simultaneous CNC axes: 3
  X-axis travel: 1050 mm
  Y-axis travel: 570 mm
  Z-axis travel: 510 mm

TABLE
  table surface (left-right): 1300 mm
  table surface (front-back): 570 mm
  workpiece load (max): 1000 kg

SPINDLE / HEAD
  spindle revolutions (max): 12000 /min
  tool fixture: ISO SK 40

AXIS DRIVES
  rapid traverse X: 36000 mm/min
  rapid traverse Y: 36000 mm/min
  rapid traverse Z: 30000 mm/min

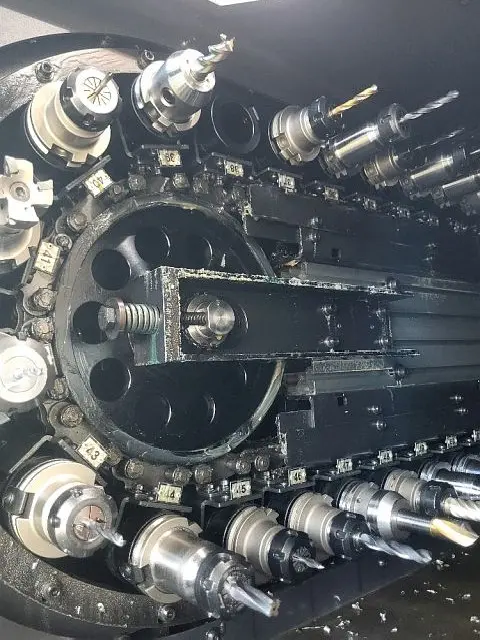

TOOL MAGAZINE
  number of positions: 30
  tool diameter max.: 80 mm
  - with free neighbour positions: 125 mm
  tool length max.: 300 mm

AUTOMATIC WORKLOAD EQUIPMENT
  number of store positions: 60

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 3145 mm
  space requirements -front/back-: 2221 mm
  total height: 2985 mm
  total weight approx.: 6500 kg

ATTACHMENTS
  through spindle coolant attachment: yes
  closed cabin: yes
  European CE standards: yes
