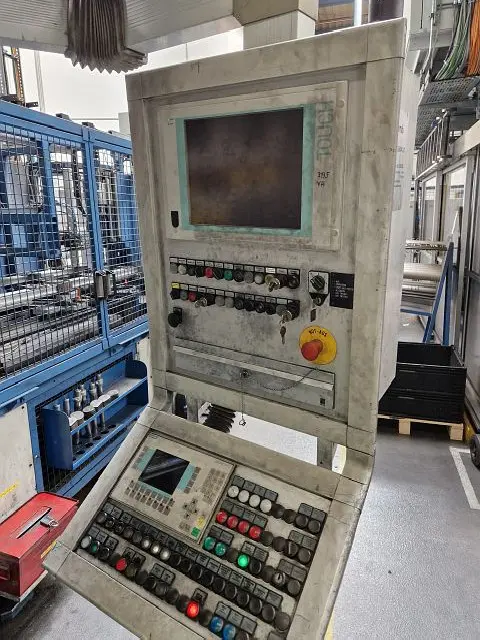

CONTROLS
SIEMENS
PRESS DESIGN
drive system: hydraulic
frame design: H-frame, monoblock
openings in uprights: yes
number of suspensions: 3
PRESS FORCES
total force (nominal): 175 to
PRESS TABLE
table surface (left-right): 1500 mm
table surface (front-back): 810 mm
SLIDE
slide force: 25 to
table surface (left-right): 480 mm
table surface (front-back): 480 mm
stroke: 300 mm
SLIDE EJECTOR / CUSHION
stroke: 100 mm
DIE CUSHION (TABLE CUSHION)
cushion force: 2 to
stroke: 40 mm
EJECTOR (TABLE EJECTOR)
nominal force: 0.2 to
stroke: 40 mm
SLIDE
slide force: 25 to
table surface (left-right): 480 mm
table surface (front-back): 480 mm
stroke: 300 mm
SLIDE EJECTOR / CUSHION
stroke: 100 mm
DIE CUSHION (TABLE CUSHION)
cushion force: 10 to
stroke: 100 mm
EJECTOR (TABLE EJECTOR)
nominal force: 0.2 to
stroke: 40 mm
TOOL ASSEMBLY DIMENSIONS
shut height (stroke down, adjustment up), BDC: 500 mm
distance between columns (H-frame): 1550 mm
passline opening (free passage in side columns): 700 mm
free passage between side columns (height): 640 mm
SLIDE
slide force: 125 to
table surface (left-right): 480 mm
table surface (front-back): 480 mm
stroke: 300 mm
SLIDE EJECTOR / CUSHION
stroke: 100 mm
DIE CUSHION (TABLE CUSHION)
cushion force: 2 to
stroke: 40 mm
EJECTOR (TABLE EJECTOR)
nominal force: 0.2 to

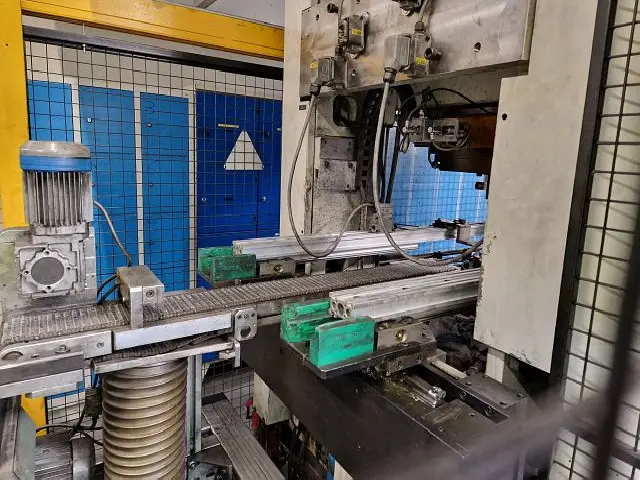

TRANSFER SYSTEM
number of tool stations: 3
distance between tools, stroke X max.: 500 mm
distance between tools, stroke X min.: 0 mm
stroke Y max.: 80 mm
stroke Y min.: 0 mm
stroke Z max.: 30 mm
stroke Z min.: 0 mm
distance press table - transfer rail min.: 168.5 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 120 kW
mains voltage: 400 V
mains frequency: 50 Hz
ATTACHMENTS (PRESSES)
gripper transfer system: yes

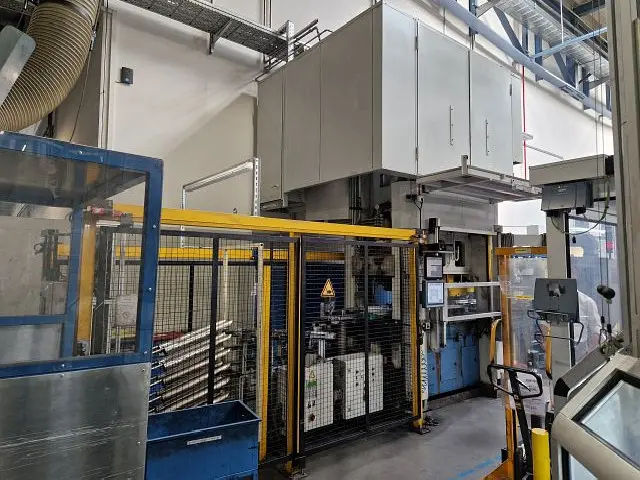

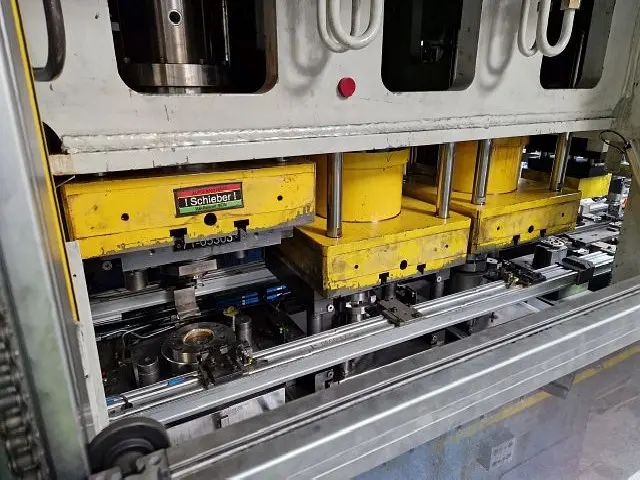

Hydraulic 3-slide press with transfer device
Defects:
Crack in the upright, without affecting the current application,
monitored by press force monitoring system
