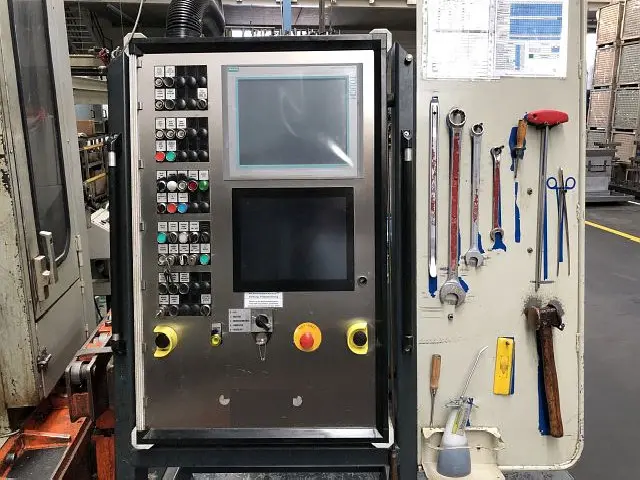

CONTROLS
PLC SIEMENS S7-400

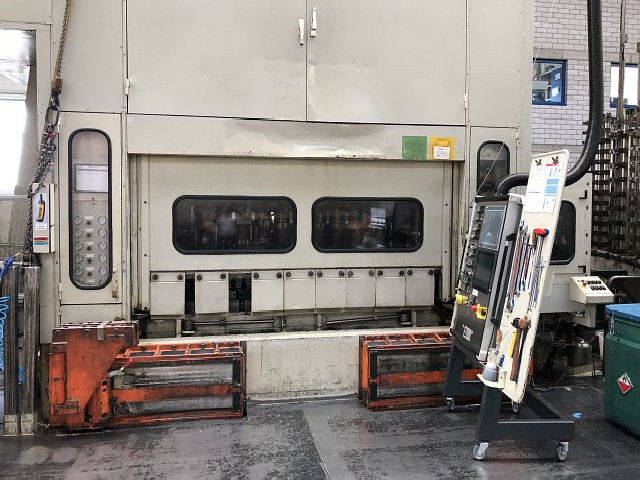

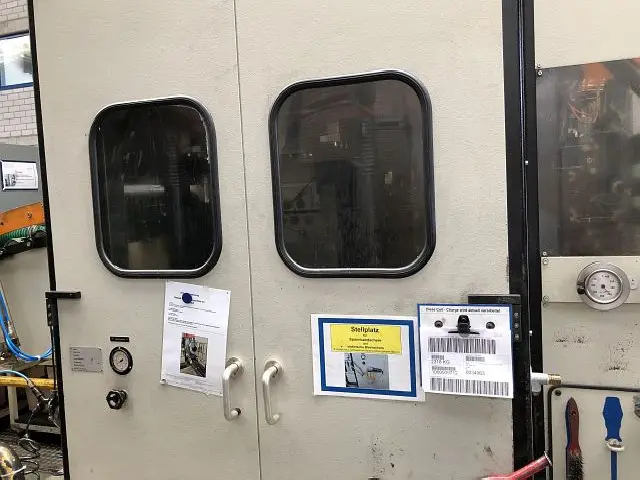

PRESS DESIGN
drive system: eccentric / crank
openings in uprights: yes
number of suspensions: 2
slide ejectors / cushion: yes
table cushion: yes
opening in table: yes
quick die change system: yes
PRESS FORCES
total force (nominal): 400 to
nominal work capacity: 32 kNm
PRESS TABLE
table surface (left-right): 2600 mm
table surface (front-back): 990 mm
thickness of bolster plate: 200 mm
height above floor level: 800 mm
opening in bed (left-right): 2325 mm
opening in bed (front-back): 280 mm
SLIDE
slide force: 400 to
table surface (left-right): 2600 mm
table surface (front-back): 950 mm
stroke: 210 mm
stroke rate (max.): 90 /min
SLIDE (MECHAN. PRESS)
slide adjustment: 150 mm
stroke rate (min.): 25 /min
stroke rate (max.): 90 /min
main drive power: 75 kW
SLIDE EJECTOR / CUSHION
number of ejectors: 13
nominal force: 3.7 to
stroke: 89 mm
TOOL ASSEMBLY DIMENSIONS
shut height (stroke down, adjustment up), BDC: 705 mm

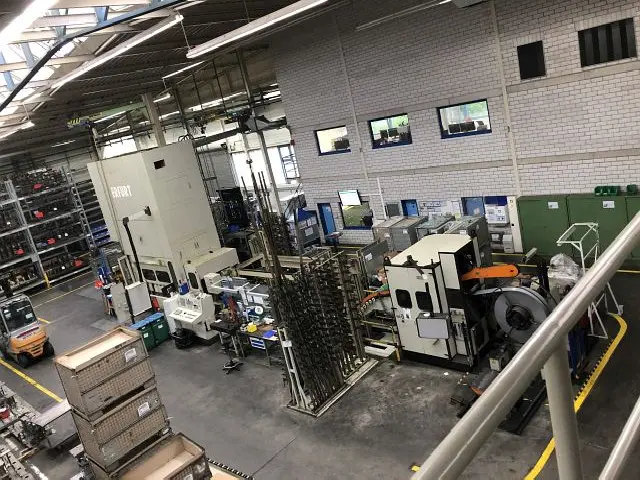

OVERALL SPECIFICATIONS (COIL LINES)
sheet width max.: 400 mm
sheet thickness max.: 5 mm
coil weight max.: 4 to
feed velocity max.: 50 m/min

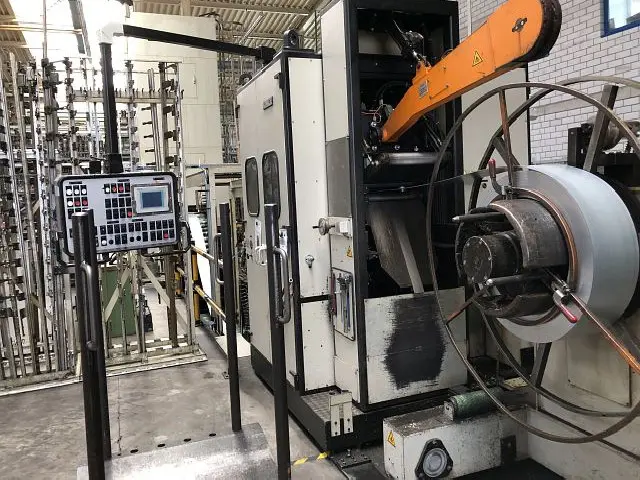

DECOILER
design: single reel, traversable
coil weight max.: 4 to
max. diameter of coil: 1500 mm
mandrel expansion range from: 460 mm
mandrel expansion range up to: 530 mm
LEVELLER UNIT
number of leveller rolls: 9
diameter of leveller rolls: 50 mm
loop controls: yes
STRIP-FEEDER
feeder type: roll feeder
roll diameter: 160 mm
TRANSFER SYSTEM
distance between tools, stroke X max.: 360 mm
distance between tools, stroke X min.: 90 mm
stroke Y max.: 80 mm
stroke Z max.: 0 mm
Inner width clamping rails closed max.: 470 mm
Inner width clamping rails closed min.: 275 mm
distance press table - transfer rail min.: 320 mm
DIMENSIONS / WEIGHTS
height above floor level: 6300 mm
total weight approx.: 73000 kg
ATTACHMENTS (PRESSES)
European CE standards: yes

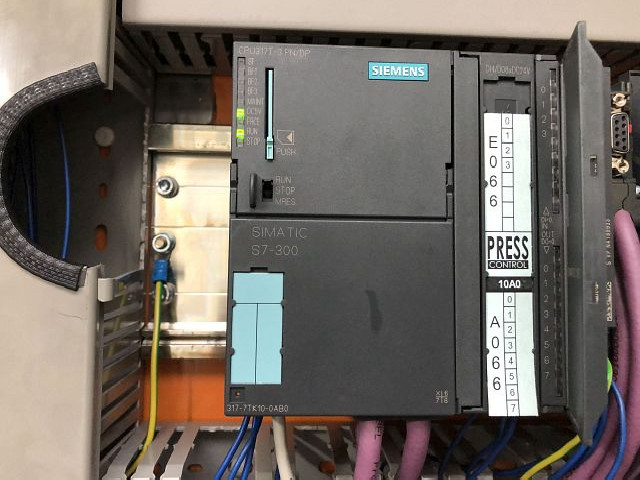

+ KOHLER coil line with SIEMENS S7-317 control system

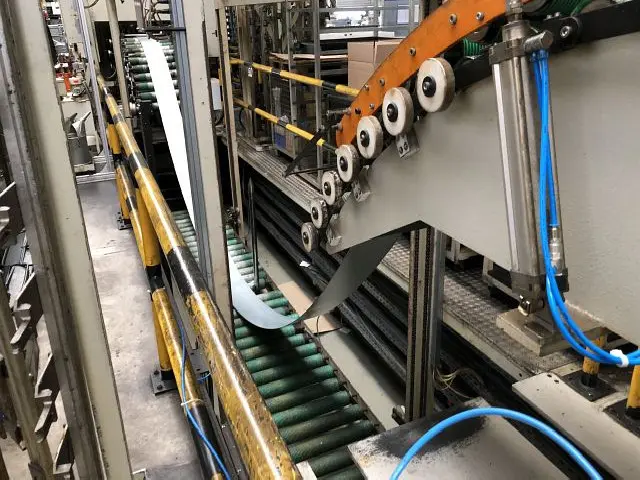

+ Zig-zag feed 1-3 fold
+ HIESSL band lubrication unit
+ SANDER 2-axis transfer unit with variable feed
+ UNIDOR press force monitoring
+ die cushion bar in the table with exchangeable die cushions
+ System regularly maintained and in good condition
