CONTROLS

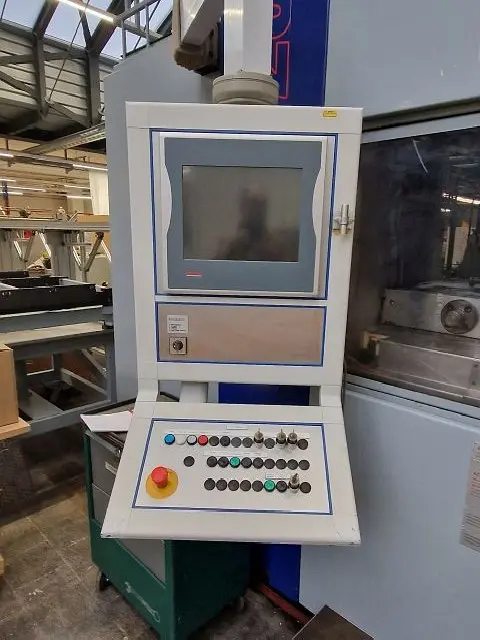

PC controller BECKHOFF C 6140

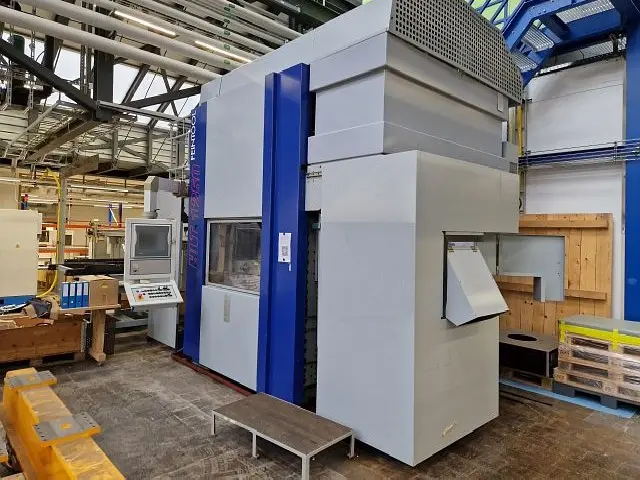

PRESS DESIGN
drive system: hydraulic
frame design: H-frame, monoblock
quick die change system: yes
feedstock transport direction: left to right
SLIDE
total force (nominal): 410 to
stroke: 200 mm
SLIDE (HYDR. PRESS)
approximation velocity max.: 200 mm/s
working velocity min.: 8 mm/s
working velocity max.: 80 mm/s
return velocity max.: 150 mm/s
COUNTER RAM
nominal force: 120 to
stroke: 40 mm
V-RING
nominal force: 250 to
stroke: 40 mm

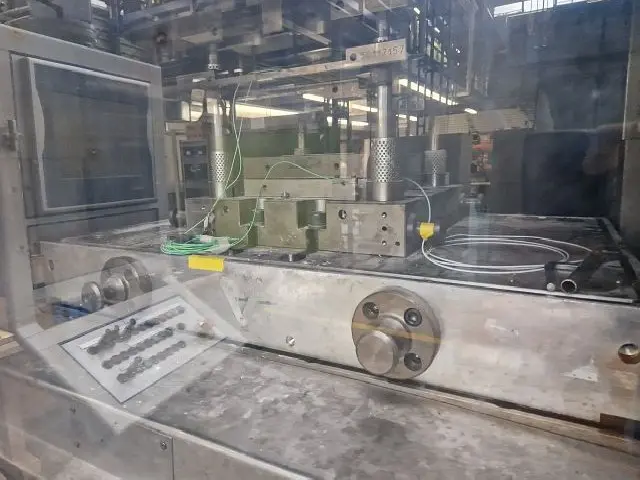

TOOL DIMENSIONS
lower table (left-right): 820 mm
lower table (front-back): 1250 mm
upper table (left-right): 820 mm
upper table (front-back): 1250 mm
shut height max.: 410 mm
STRIP-FEEDER
feeder type: roll feeder
sheet width max.: 450 mm
sheet thickness max.: 16 mm
feeding step min.: 1 mm
feeding step max.: 999.9 mm
speed max.: 48 m/min
nominal force: 60 kN

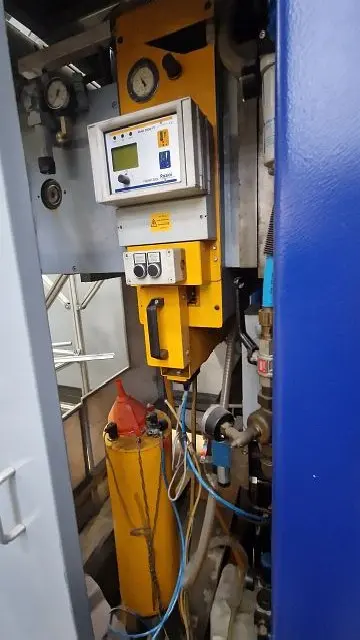

band lubrication system: yes
CROP SHEAR
cutting force: 310 kN

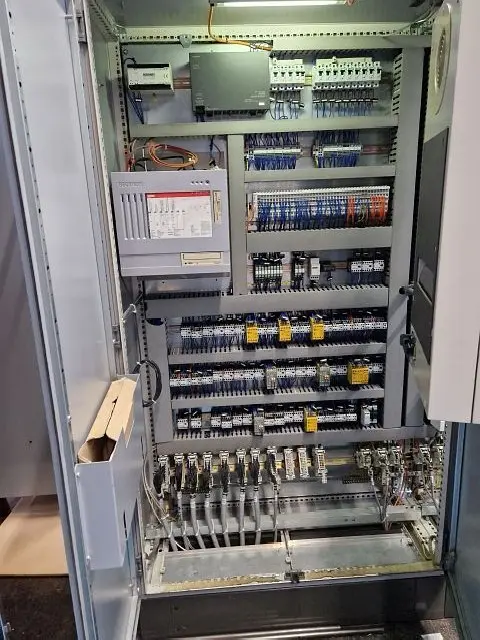

ELECTRICAL SPECIFICATIONS
total power consumption: 175 kW
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 4540 mm
space requirements -front/back-: 2860 mm
total height: 4000 mm
ATTACHMENTS -FINEBLANKING PRESS-
autom. tool clamping device: yes
closed cabin: yes
waste cutter: yes
The press was only used rarely.

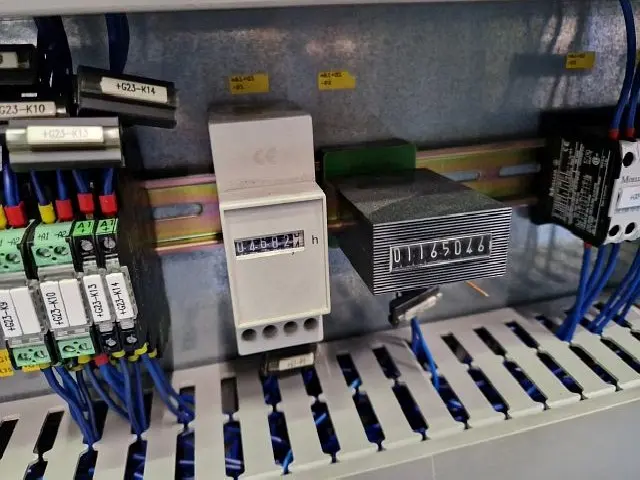

Hours of operation: 4'682
Stroke count: 1.2 Mio
