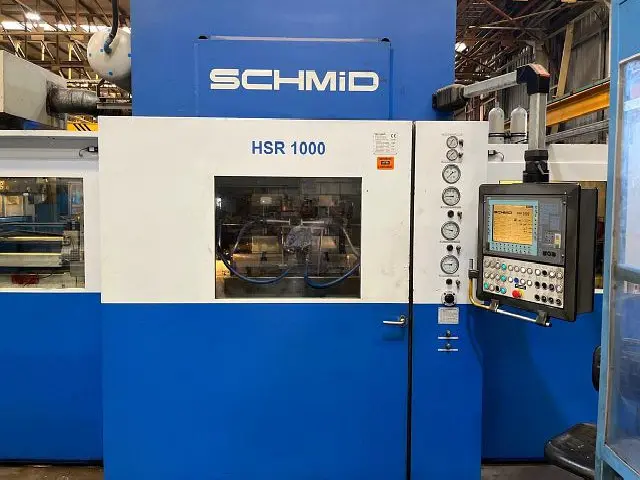

Пресс для чистовой вырубки FEINTOOL (SCHMID) HSR 1000 ECO

"Пресс для чистовой вырубки FEINTOOL (SCHMID) HSR 1000 ECO, г.в. 2007"

Объявление # P0225081
Тип: Пресс для чистовой вырубки
Производитель: FEINTOOL (SCHMID)
Год выпуска: 2007
Модель/Тип: HSR 1000 ECO
Состояние: Бу
Наработка: h
Реферальный номер: p226063
  • ID: P0225081
  • 125
  • 2025-04-07
  • Цена
  • по запросу
Связаться через Telegram Telegram
Связаться через WhatsApp WhatsApp


CONTROLS
   SIEMENS S7 300

PRESS DESIGN
  drive system: hydraulic
  frame design: H-frame, monoblock
  quick die change system: yes
  feedstock transport direction: left to right

SLIDE
  total force (nominal): 1000 to
  stroke: 205 mm

SLIDE (HYDR. PRESS)
  working velocity min.: 10 mm/s
  working velocity max.: 30 mm/s

COUNTER RAM
  nominal force: 160 to

V-RING
  nominal force: 400 to

TOOL DIMENSIONS
  lower table (left-right): 900 mm
  lower table (front-back): 900 mm

OVERALL SPECIFICATIONS (COIL LINES)
  sheet width max.: 520 mm
  sheet thickness max.: 12 mm
  coil weight max.: 6 to
  feed velocity max.: 93 m/min
  feedstock transport direction: left to right

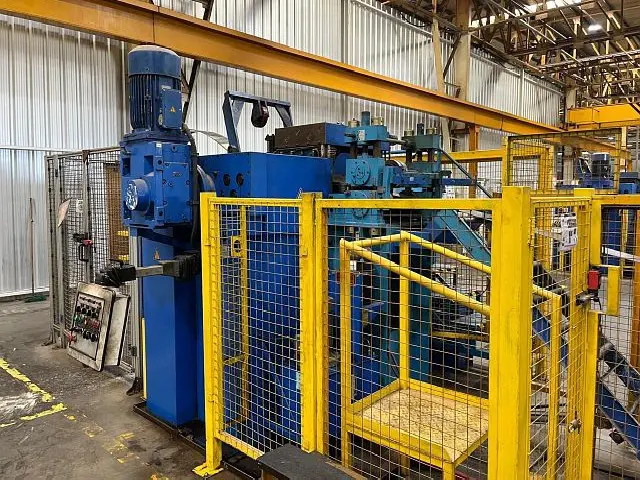

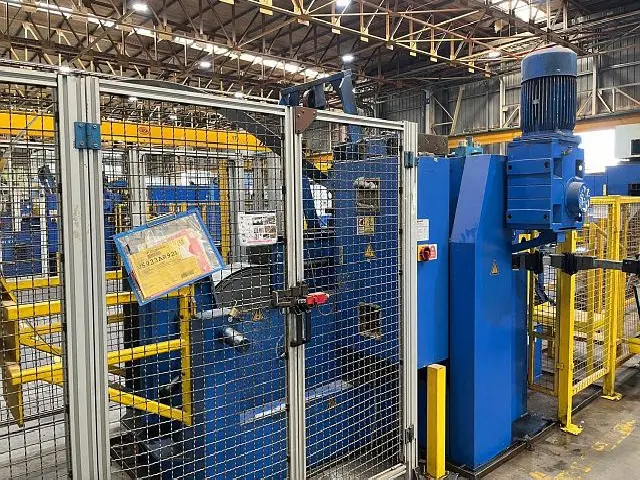

LEVELLER UNIT
  number of leveller rolls: 8
  diameter of leveller rolls: 90 mm
  diameter of feed rolls: 110 mm

STRIP-FEEDER
  feeder type: grip feeder
  sheet width max.: 520 mm
  sheet thickness max.: 40 mm
  nominal force: 18 kN
  band support rolls: yes

CROP SHEAR
  cutting force: 1050 kN

ELECTRICAL SPECIFICATIONS
  total power consumption: 190 kW

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 16000 mm

ATTACHMENTS -FINEBLANKING PRESS-
  autom. tool clamping device: yes
  closed cabin: yes
  decoiler: yes
  leveller unit: yes
  waste cutter: yes


SIEMENS S7 300 controls
Control Panel SIEMENS Panel PC 477B

Switch on hours acc. to counter : 62'000 h
Total strokes acc. to counter:     3 Mio

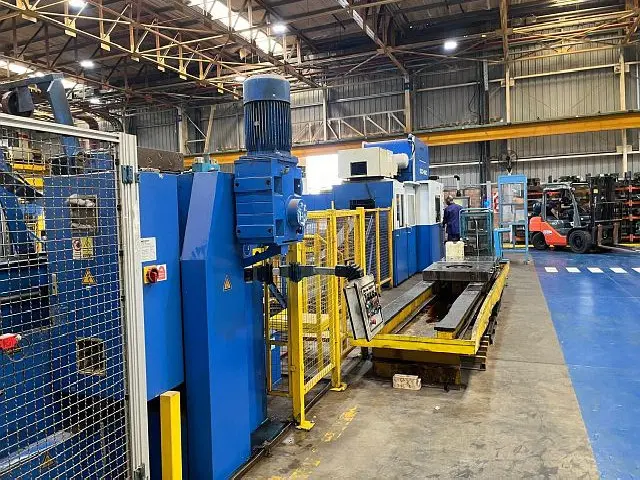

including Coil line SCHMID HR 12
