CONTROLS
PLC SIEMENS S7-400
SLIDE
total force (nominal): 630 to
stroke: 205 mm
SLIDE (HYDR. PRESS)
working velocity min.: 11 mm/s
working velocity max.: 44 mm/s
COUNTER RAM
nominal force: 160 to
TOOL DIMENSIONS
lower table (left-right): 650 mm
lower table (front-back): 650 mm
DECOILER
design: cradle
LEVELLER UNIT
sheet thickness max.: 10 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 120 kW
mains voltage: 400 V
DIMENSIONS / WEIGHTS
space requirements -left/right-: 15000 mm
space requirements -front/back-: 3000 mm
height above floor level: 3000 mm
height under floor level: 12000 mm

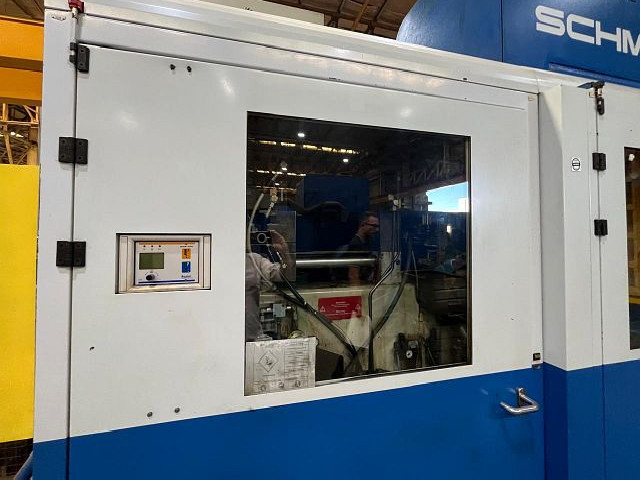

ATTACHMENTS -FINEBLANKING PRESS-
autom. tool clamping device: yes
light barrier: yes
closed cabin: yes
decoiler: no
leveller unit: yes
waste cutter: yes
SIEMENS S7 400 controls
Control Panel SIEMENS Panel OP37
including Coil line SCHMID HR 10
