CONTROLS
SIEMENS S5 95U

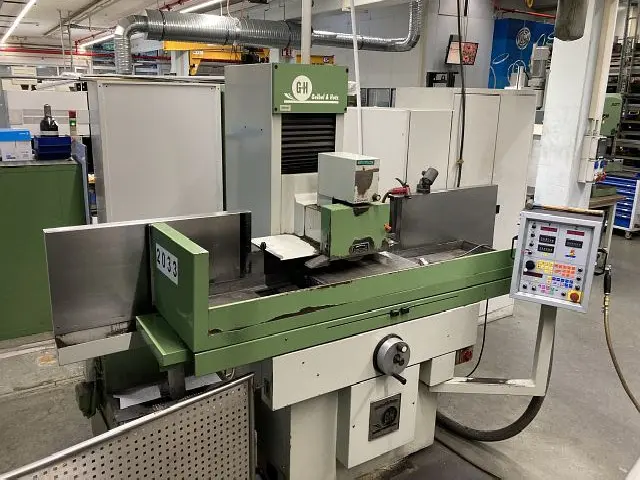

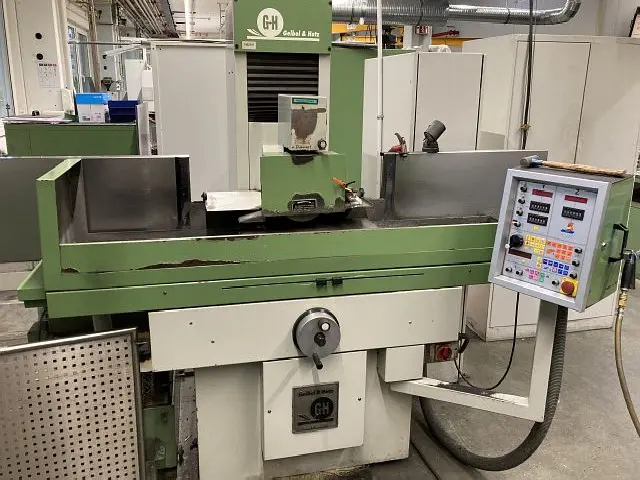

WORKING RANGE SURFACE GRINDING
grinding length: 600 mm
grinding width: 350 mm
distance of axis of horizontal spindle - clamping surface (max.): 525 mm
workpiece height (max) with largest wheel: 375 mm
TABLE (SURFACE GRINDING)
workpiece load (max): 400 kg
MAGNETIC TABLE
length: 600 mm
width: 350 mm
SPINDLESTOCK GRINDING SPINDLE
X-axis travel: 660 mm
Y-axis travel: 350 mm
Z-axis travel: 385 mm
drive power: 4.5 kW
GRINDING TOOL
type of grinding tool: wheel
diameter (max): 300 mm
borehole: diameter: 76.2 mm
width: 50 mm
AXIS DRIVES
traverse velocity X (min): 2000 mm/min
traverse velocity X (max): 28000 mm/min
ELECTRICAL SPECIFICATIONS
total power consumption: 8 kW
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
total weight approx.: 2100 kg
ATTACHMENTS (GRINDING)
Flange of grinding wheel: yes
Grinding discs, number: 1

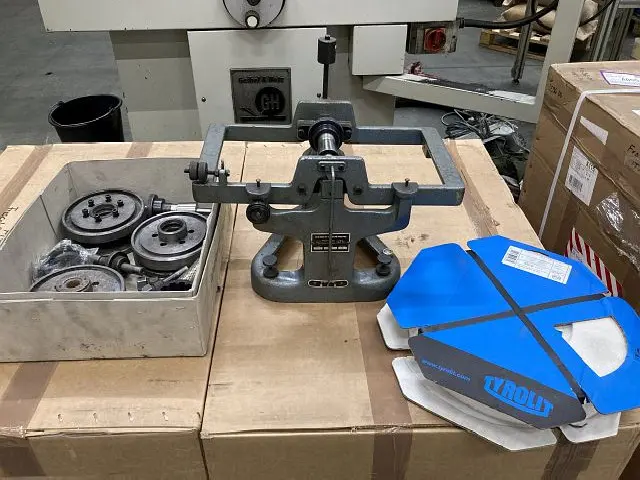

balancing attachment: yes

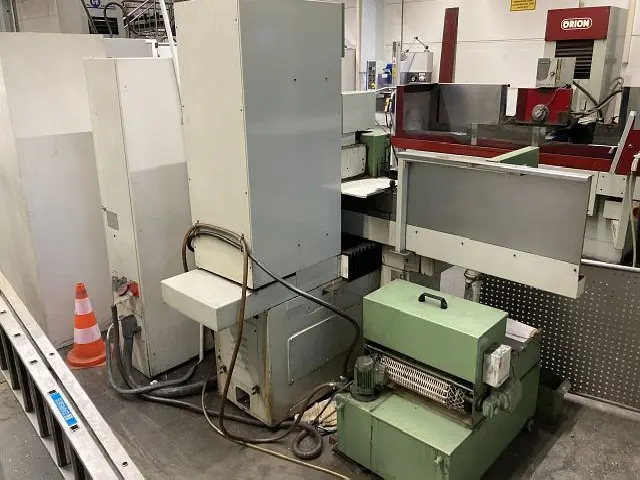

coolant unit: yes
