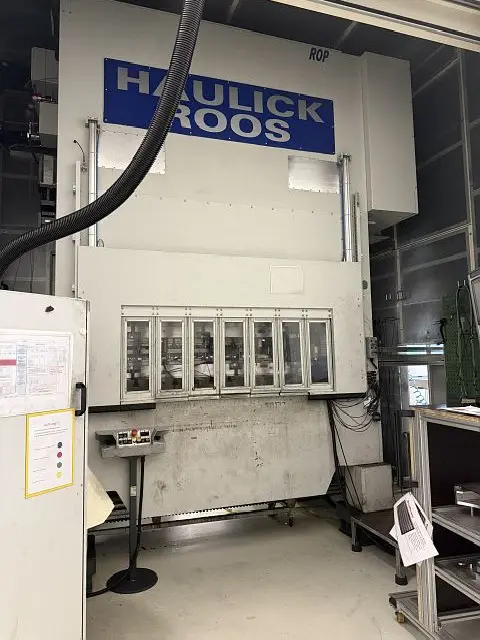

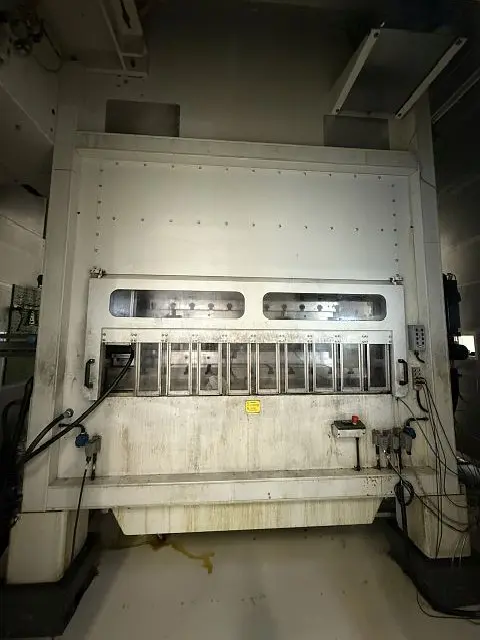

Штамповочный автомат HAULICK+ROOS ROP 1600 - 2000

CONTROLS
  PLC SIEMENS ET 200 S

PRESS DESIGN
  drive system: eccentric / crank
  openings in uprights: yes
  number of suspensions: 2
  number of slide actions: 1
  table cushion: no
  opening in table: yes
  feedstock transport direction: left to right

PRESS FORCES
  total force (nominal): 160 to

PRESS TABLE
  table surface (left-right): 2000 mm

SLIDE (MECHAN. PRESS)
  slide adjustment: 100 mm
  stroke min.: 12 mm
  stroke max.: 120 mm
  stroke rate (max.): 300 /min
  main drive power: 51 kW


Press is ready for demonstration under power

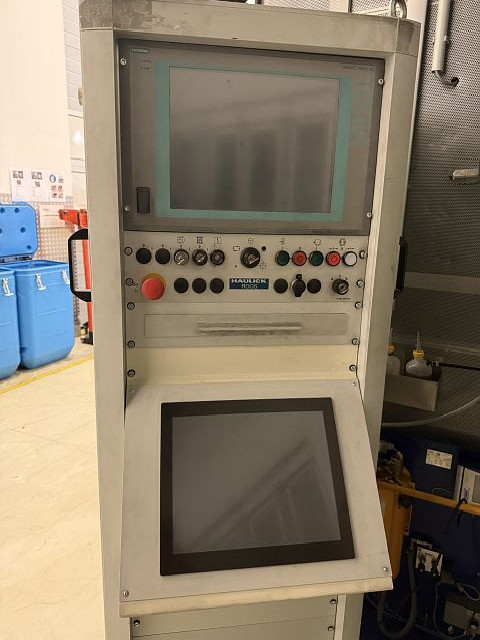

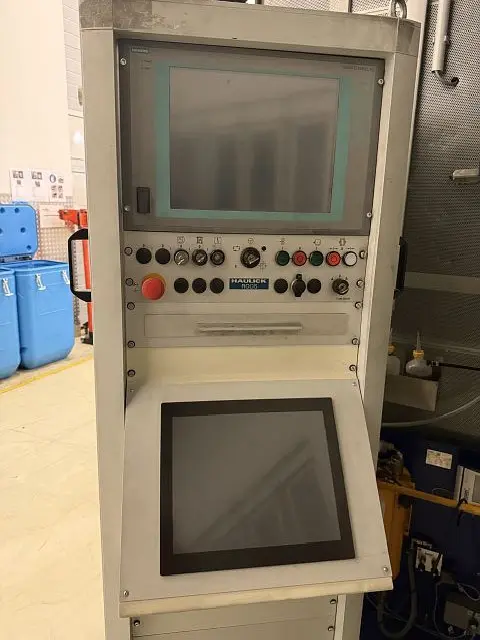

Control system:
SIEMENS drives, SIEMENS ET 200 S controller with Profinet
UNIDOR ioController

Accessories:

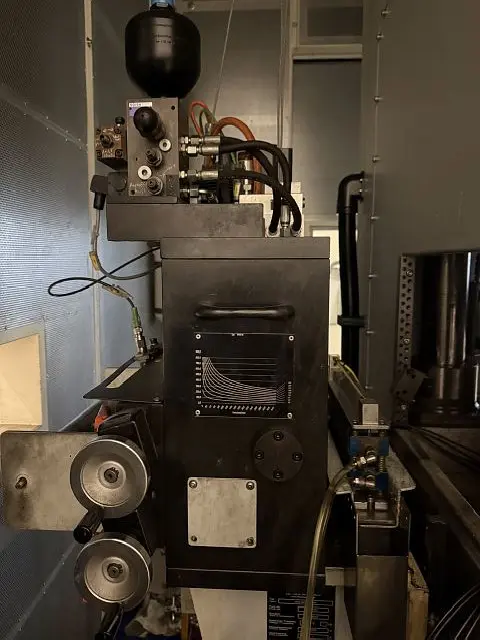

+ LORENZ servo feed

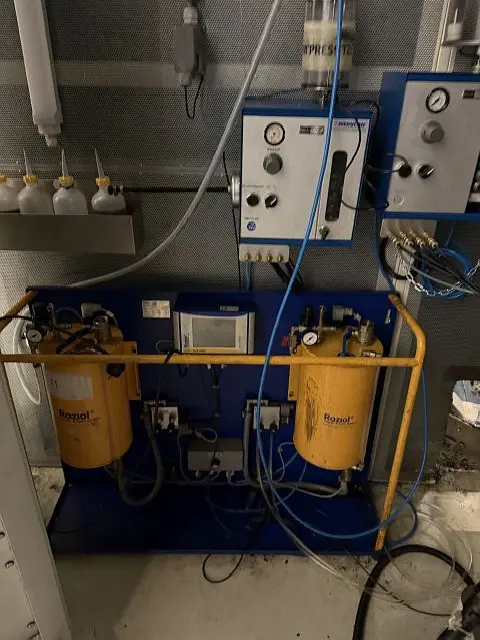

+ RAZIOL belt lubrication system
