| Производитель | Cefla |
| Модель | FVN 3/5500/190/24 |
| Год выпуска | 2000 |
| Ширина | 5.967 mm |
| Ширина сварки | 1300 mm |
| Подача | 3-10 m/min |
| Кол. палет | 24 Stk. |
| Вольт | 400 / 50 |
| Длина | 7.615 mm |
| Высота | 3.345 mm (4.000) mm |
| Длина паллеты | 5.500 mm |

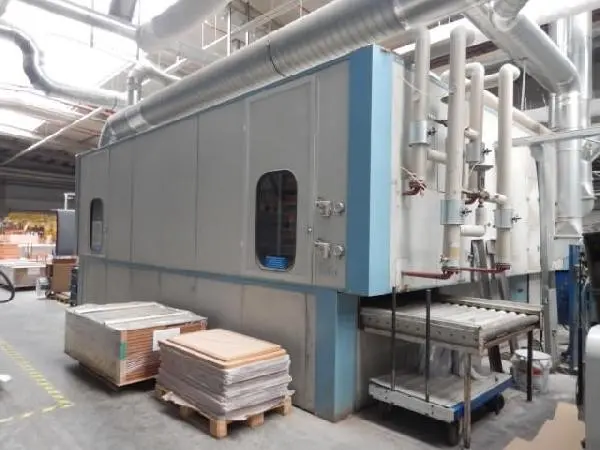

- Producer: Cefla
- Type: FVN 3/5500/190/24
- Working width: 1300 mm
- Year of construction : 2000
- Pallet length: 5.500 mm
- Useable pallet length: 5.200 mm
- Pallet number: 24 Stk.
- Number of useable pallet: 22 Stk.
- Max. part height: 110 mm
- Infeed and outfeed on the same side, u-form
- Heat output: 3x84 KW / 3x72.000 kcal/h
- Feed speed: 3-10 m/min
- Total connection power: 18,8 kW
- Voltage / HZ: 400 / 50
- Clearance height between the pallet : 120 mm
- Measure: middle pallet - middle pallet : 3.660 mm
- Number of adjustable temperature zone: 3 Stk.
- Width: 5.967 mm
- Length: 7.615 mm
- Height: 3.345 mm (4.000) mm
- Fresh air: 12.000-18.000 m³/h
- Location, not in stock
- Ohne Stellventile und Wasserpumpen
