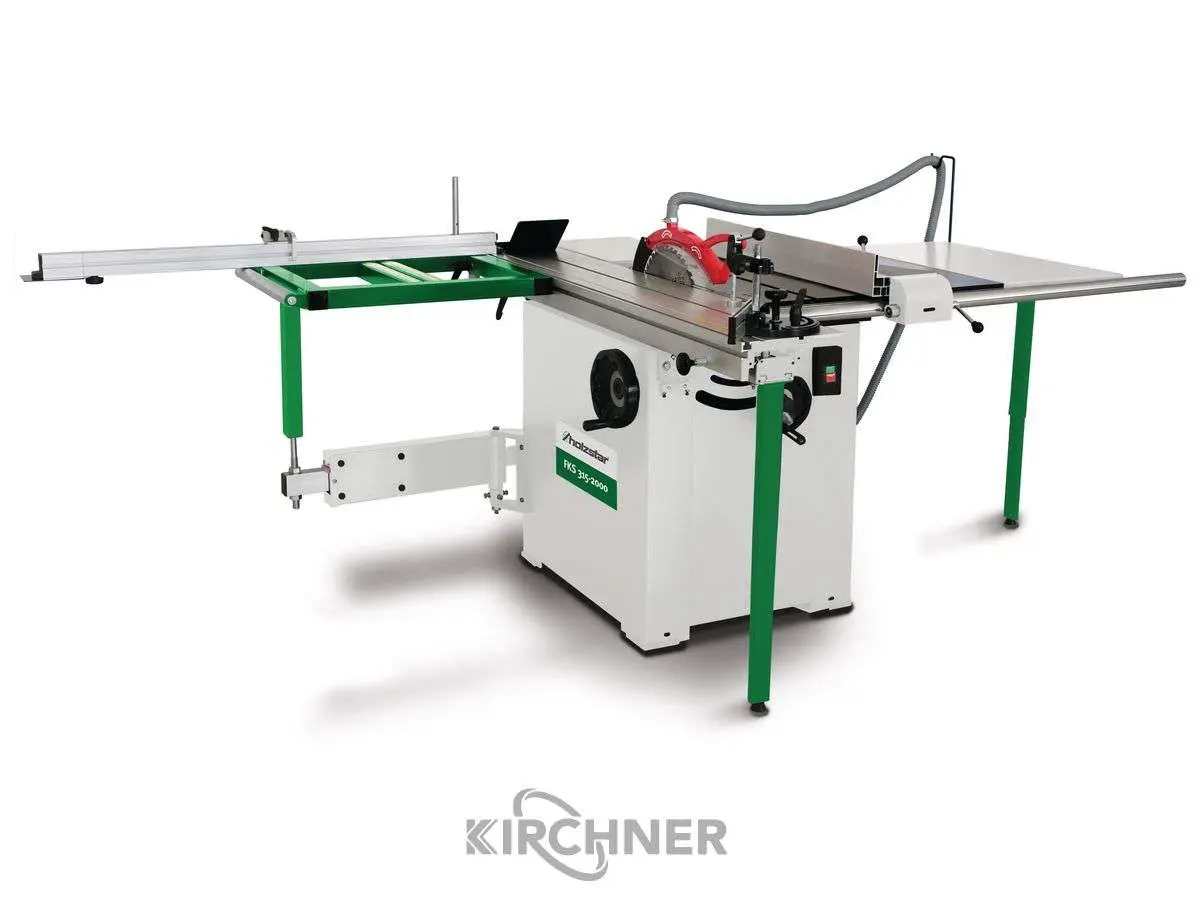

Шлифовальные и полировальные станки Holzstar Formatkreissäge FKS 315-2000 E

NEW- - Serially with scoring device - Extendable telescopic stop that can be swiveled from -45 ° to + 45 ° finely adjustable stop flap - Robust and precise design with format sliding carriage - The gray cast iron work table enables low-vibration work - Saw blade height adjustment via a hand wheel - Saw blade tilting from 90 to 45 ° adjustable via hand wheel with scale - Stable saw unit guarantees vibration-free and precise work - Solid outrigger table with castor and telescopic arm for maximum stability - Miter fence and hold-down device over the entire length of the slide movable - Large aluminum rip fence on round rod guide with Fine tuning - Strong drive motor for constant cutting speed, even at 100 mm cutting height - Large work table and standard table extension for Cutting widths up to 1220 m Technical specifications: Length approx. 4330 mm Width / depth approx. 4155 mm Height approx. 1150 mm Weight approx. 275 kg Extraction nozzle diameter 100 mm Suction nozzle diameter saw blade guard 38 mm Input power 3.5 kW Connection voltage 400 V Mains frequency 50 Hz Cutting width with rip fence 1220 mm Trimming length 2000 mm Saw blade inclination 90 - 45 ° Max. Cutting height 90 ° 100 mm Max. Cutting height 45 ° 80 mm Saw blade diameter 315 mm Saw blade speed 4000 rpm Table length 680 mm Table width 580 mm Table height 870 mm Saw blade diameter, scoring unit 90 mm Speed ??of saw blade scoring unit 5800 min¯ Scope of delivery: - Format sliding carriage with extension arm - Roll of material on the boom - Rip fence with round rod guide and fine adjustment - table extension - Table widening - Folding stop - Trimming shoe - eccentric clamp - Scoring device - Saw blade protection hood with suction hose Storage location 97447 Gerolzhofen -free loading-
