Токарный станок с ЧПУ HYUNDAI WIA L 400 MC

CONTROLS

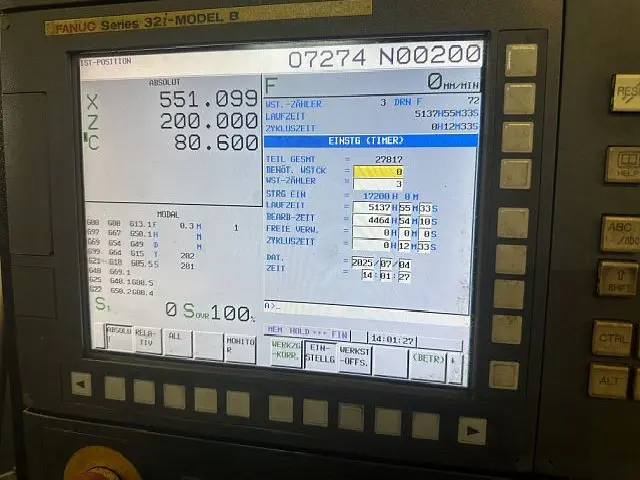

  CNC controls FANUC 32I-MODEL B - MANUAL GUIDE I

BASIC FUNCTIONS
  number of spindles: 1
  number of turrets: 1
  live positions: yes

WORKING RANGE TURNING
  turning diameter (max): 530 mm
  bar diameter (max): 117 mm
  worpiece length max.: 500 mm

MAIN SPINDLE
  spindle revolutions (max): 2000 /min
  drive power: 37 kW
  spindle torque: 3073 Nm

X/Z SLIDE
  number of tool positions (total): 12
  number of live positions: 12
  - rotation speeds (max): 4000 /min
  - drive power: 7.5 kW

ATTACHMENTS (TURNING)
  chip conveyor: yes


• Programmable tailstock MK#5
• Main spindle with 2-stage gearbox
• Tooleye
• Chip conveyor
• High-pressure pump, 20 bar
• 3-jaw chuck, diameter 380 mm
• Tool breakage monitoring
• Programme memory expansion
• Programmable clamping pressure
