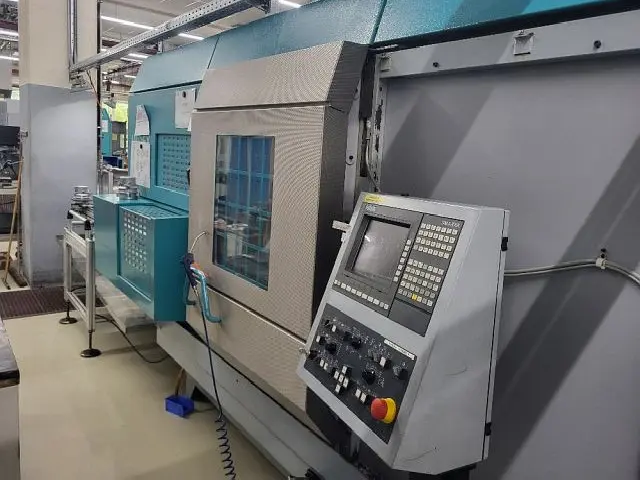

CONTROLS
CNC controls SIEMENS 840 C
BASIC FUNCTIONS
number of spindles: 1
number of turrets: 1
number of c-axes: 1
WORKING RANGE TURNING
turning diameter (max): 450 mm

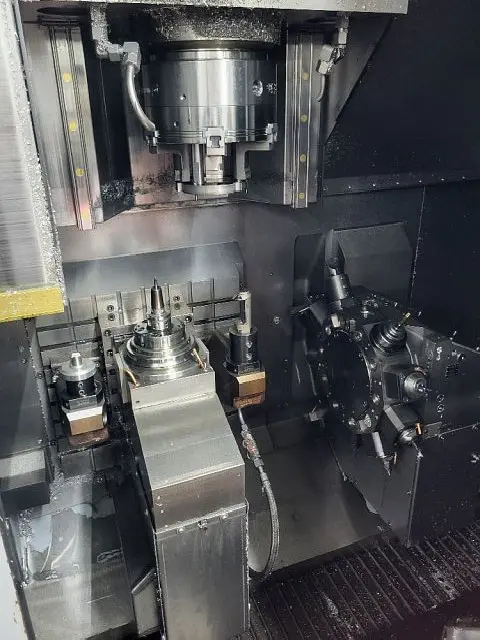

MAIN SPINDLE
spindle revolutions (max): 4200 /min
drive power S6 40%: 56 kW
drive power S1 100%: 36.5 kW
spindle torque S6 40%: 550 Nm
spindle torque S1 100%: 340 Nm
X/Z SLIDE
Z-axis travel: 340 mm
X-axis travel: 1500 mm
number of tool positions (total): 10
- rotation speeds (max): 6000 /min
TOOL MAGAZINE
number of positions: 10
ELECTRICAL SPECIFICATIONS
mains power supply: 76 kVA
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 7200 mm
space requirements -front/back-: 2400 mm
total height: 2700 mm
total weight approx.: 8400 kg
