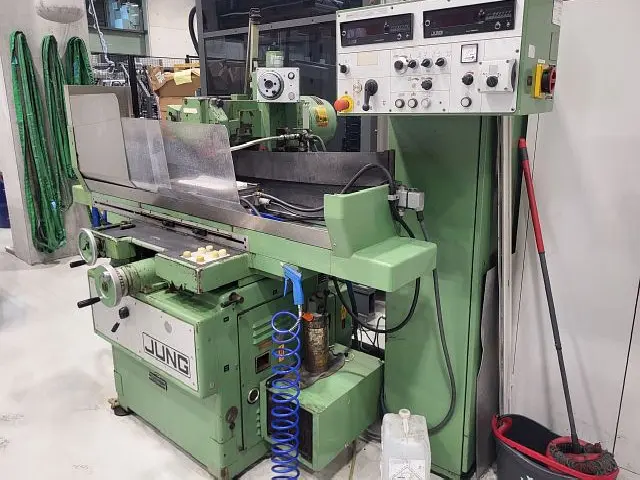

Плоско шлифовальный станок - гориз. JUNG JF 520

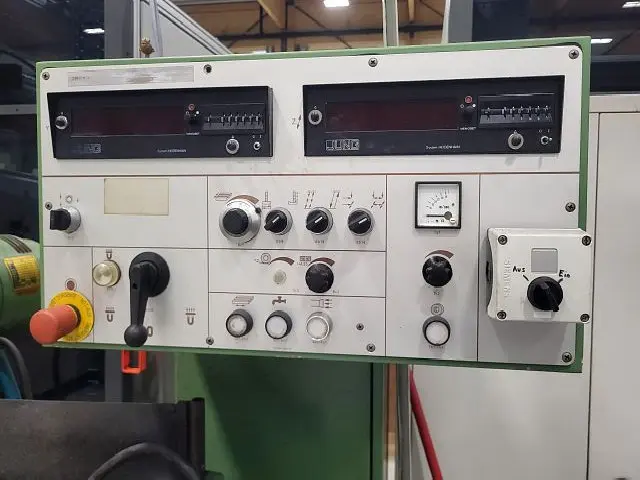

CONTROLS
  electronic controls

WORKING RANGE SURFACE GRINDING
  grinding length: 600 mm
  grinding width: 200 mm

TABLE (SURFACE GRINDING)
  magnetic table: yes

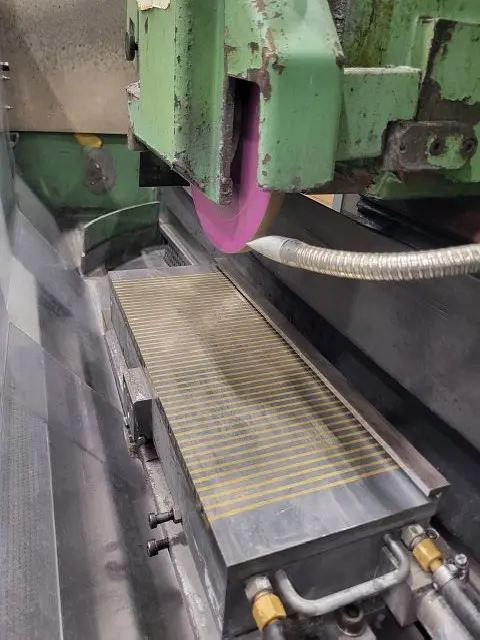

MAGNETIC TABLE
  length: 600 mm
  width: 200 mm
  weight: 100 kg

SPINDLESTOCK GRINDING SPINDLE
  spindle revolutions (max): 4200 /min

GRINDING TOOL
  type of grinding tool: wheel
  diameter (max): 250 mm
  borehole: diameter: 51 mm
  width: 25 mm

ELECTRICAL SPECIFICATIONS
  total power consumption: 7.5 kW
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 3000 mm
  space requirements -front/back-: 2540 mm
  total height: 1850 mm
  total weight approx.: 2000 kg
