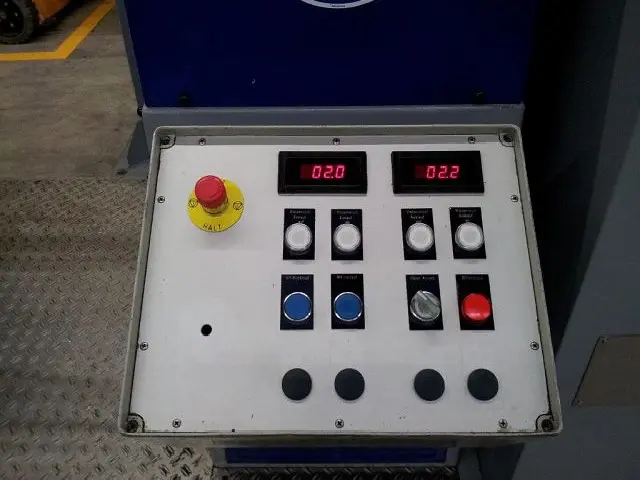

CONTROLS
electronic controls SIEMENS S7
DECOILER
design: twin reel
sheet width max.: 350 mm
max. diameter of coil: 1000 mm
mandrel expansion range from: 360 mm
mandrel expansion range up to: 530 mm
feed velocity min.: 0 m/min
feed velocity max.: 60 m/min
coil weight max.: 0.5 to

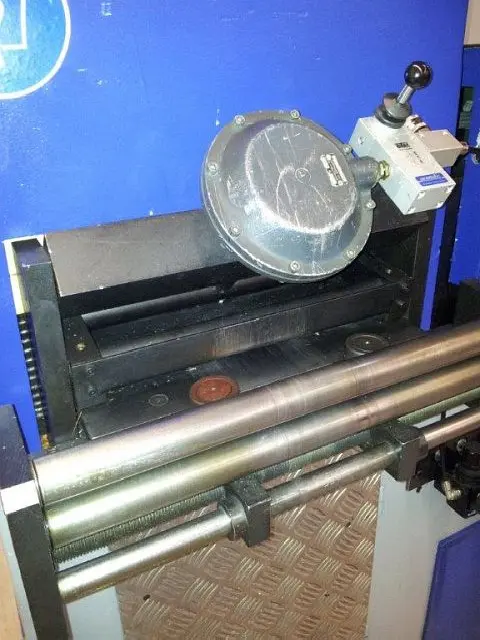

LEVELLER UNIT
sheet width max.: 350 mm
sheet thickness max.: 4 mm
sheet thickness min.: 0.5 mm
material cross section max. (450 N/mm2): 750 mm²
number of leveller rolls: 9
diameter of leveller rolls: 45 mm
distance between leveller rolls: 47 mm
number of infeed-/outfeed rolls: 2
diameter of feed rolls: 45 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 10 kW
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 4200 mm
space requirements -front/back-: 1800 mm
total height: 2200 mm
total weight approx.: 1500 kg
