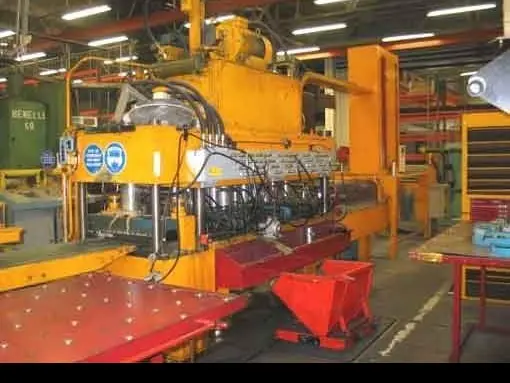

Двухстоечный пресс - гидравлический Polymatic cnc punching line

Punching press with hydraulic cylinders with magnetic base

Punching line consist of:

1.Press table 2200 x 1000 mmnbsp;
2.Punching unit SUPRA with 2 x 32 hydraulic cylinders: X-axis 2200 mm, Y-axis max 400 mm, punch force 100 Tnbsp;
3.Shear 500 mm width for sheet thickness max 3 mm. Stroke - 800 mm See also O19 3197 and M04 3197
Kapazität: 100 T
Abstand zwischen tisch -- stössel: 400 mm
Abmessungen tisch: 2200 x 1000 mm
Tischhöhe fest (1) beweglich (2): 1
Abmessungen stösselsohle: varia
Leistung Elektromotor: 20 kW
