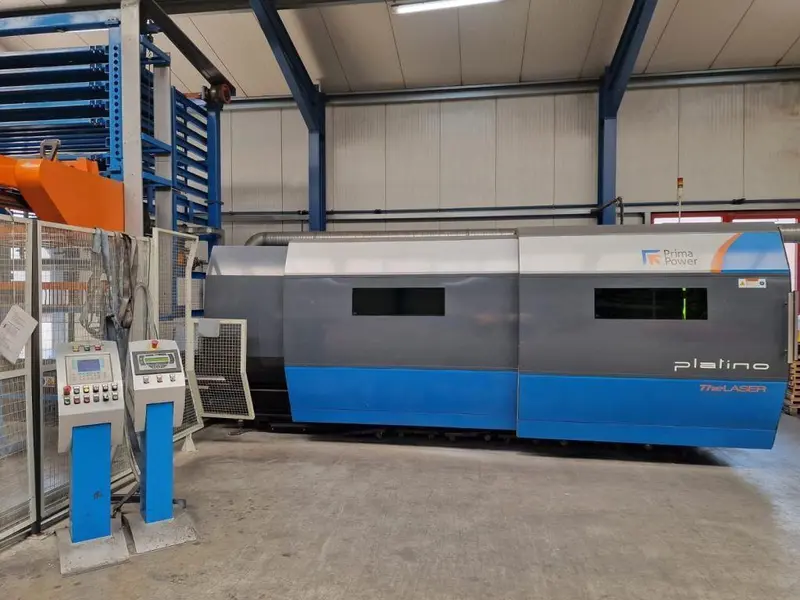

Станок лазерной резки PRIMA POWER PLATINO FIBER 1530 IPG YLS 4000 10 x pallet compakt tower

Maschinenart: Laserschneidmaschine
Lieferzeit: : nach Absprache
Tischlänge: 3000 mm
Brennerköpfe: 1
x-Ось : 3000 mm
max. Blechdicke : 20 mm
1 gebr. CNC Laserschneidanlage PRIMA POWER PLATINO FIBER
Einschaltstunden Stand Juni 2026: 67.000 h
Inkl.
- FIBERLASER Stromquelle IPG YLS4000 inkl. Chiller
- Inkl. STIMA Automatische Belade- und Entladevorrichtung für Rohmaterial und bearbeitete Bleche für 2D-Lasermaschinen Compat Server (Kompakttower)
Herstellerbeschreibung:
Die Laserschneidmaschine Platino Fiber ist ein Ergebnis aus der perfekten Balance von Innovation und Erfahrung.
Dieses Produkt kombiniert modernste effiziente und ökologische Faserlasertechnologie mit der bewährten Zuverlässigkeit und Flexibilität der Platino-Plattform.
Die Platino Fiber kann zum Schneiden einer Vielzahl von Materialien verwendet werden.
Faserlaser sind beim Schneiden hochreflektierender Materialien (z.B. Aluminiumlegierungen, Kupfer, Messing) effektiver als andere Laserquellen.
Die Platino Fiber schneidet verschiedene Dicken, bis zu 20 mm Baustahl, mit Effizienz und Qualität.
Die Produktivitätssteigerungen machen sich insbesondere bei dünnen bis mittleren Blechen bemerkbar.
Compact Server :
ist eine Belade- und Entladevorrichtung für die Handhabung von Zuschnitten und verarbeiteten Blechen. Compact Server besteht aus zwei Lagereinheiten - eine für Zuschnitte und eine für verarbeitete Bleche.
Alle Komponenten des Compact Server befinden sich über dem automatischen Palettenwechsler und benötigen daher keine zusätzliche Stellfläche. Die Vorteile dieser Lösungen sind: Zuverlässigkeit, Kompaktheit und einfache Verwaltung der Belade-/Entladevorgänge.
The newest product from SPR Italy is a highly sophisticated automation system that combines many innovative solutions that are subject to SPR patents. The system is capable of unmanned operation and provides storage, loading and unloading within the smallest footprint possible.
The tower is built above the shuttle table and the loading and unloading is done with the elevator that can be installed on either side of the tower. Simple operation and state of the art PLC contribute to a friendly integration and provide real productivity gain. The system is so compact that it became the top selling automation product, with many hundred of them sold world wide in just few years since it was launched.
Compact Tower CT 1530 is capable to store a maximum of 54 ton of raw sheets dim. 1500x3000mm stacked in18 locations, with 80mm each stack, and to load raw sheets onto the machine table and unload processed sheets thereafter. For this example we will use a 18 pallet tower such as we already installed in Melbourne this year.
The scope of the work includes the software implementation, the tests of the units at SPR factory, shipment, documentation and supervision during installation, start-up and commissioning
Concrete foundation to the engineering specifications, civil works, mains electrical supply, permits and the base plates must be supplied by Customer.
Major components
The Compact Tower is composed with following main units:
- tower to store the stack of sheet
- elevator to move the pallet on which the stack of sheet is laid
- table with fixed pins where the operator load the stack of sheet
- gripper with suction cups
- light barriers
- electric cabinet with control panel
- set of safety fences
General features:
Sheet format max. 3.100×1.570mm
Max weight 3.000Kg per stack
Max height stack 90mm
Storage System Type CT 1530
Storage capacity 18 pallets 3.000Kg
Height 6.500mm
Pitch between pallets 195mm-200mm
Description
The tower is split in 18 locations and each location contains the pallet on which the stack of raw sheet can be laid. The pallets are moved by an elevator that runs along the frontal legs of the tower; the elevator is equipped with a transfer device that push-in and pull-out the pallets into the locations. Once the pallet is on board of the elevator the pallet can reach any locations of the tower. The gripper takes one sheet at the time from the stack and loads it on the table of the machine.
The processed sheet is picked up by unloading mechanism using a “comb” inserted between the slats of the table.For “manual” loading or unloading a clearance of 900mm above the table was considered, allowing 1800 mm overall height for easy operator access.
The operator puts the stack of sheet into the tower laying the stack on the loading table; it is located under the elevator and when the elevator is in the lower position it is “sunk” into the pins of the table. The pins permit to get easy the loading (and unloading if necessary) operation carried by the operator with either a fork-lift or an overhead-crane.
Operational
1) Standard Compact Tower programs for Standard operation
2) The CT can operate in semi-automatic mode; that means that the motion of the loader and unloader will interrupt the cycle of the table until the loading of a new sheet is complete.
