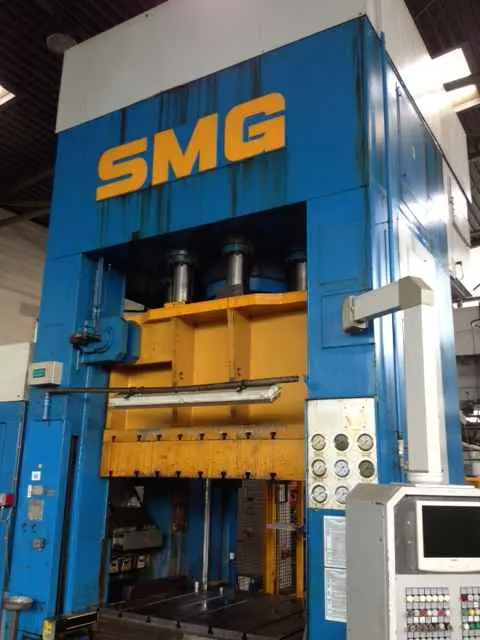

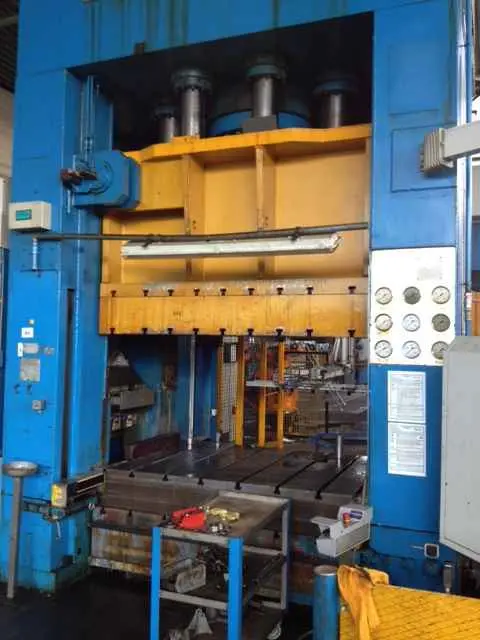

Двухстоечный пресс - гидравлический SMG HZPUI 1600/800-2200/1500, г.в. 1991

Make SMG
Model HZPUI 1600/800-2200/1500
Year of make 1991/1976
Forces:
Slide Force max. (kN) 16.000
Retraction Force (brutto) approx. (kN) 7.200
Cushion force max. (kN) 10.000
Slide Stroke (mm) 600
Cushion Stroke (mm) 475
Distance Bolster – Slide in TDC (mm) 1.500
Bolster above Floor with foundation (mm) 800
Bolster/Slide width (mm) 2.200
Bolster/Slide depth (mm) 1.500
Cushion width (mm) 1.950
Cushion depth (mm) 850
Daylight between uprights leftight approx. (mm) 2.210
Daylight between uprights front/back approx. (mm) 1.000
Table 1500 x 2000 mm
Total height above floor approx. (mm) 6.600
Electrical Power:
Main Motor capacity approx. (kW) 110
Velocities:
Fast speed downward max. (mm/s) 300
Working speed max. approx. (mm/s) 24
Working speed at nominal force approx. (mm/s) 6
Fast speed upward max. (mm/s) 250
