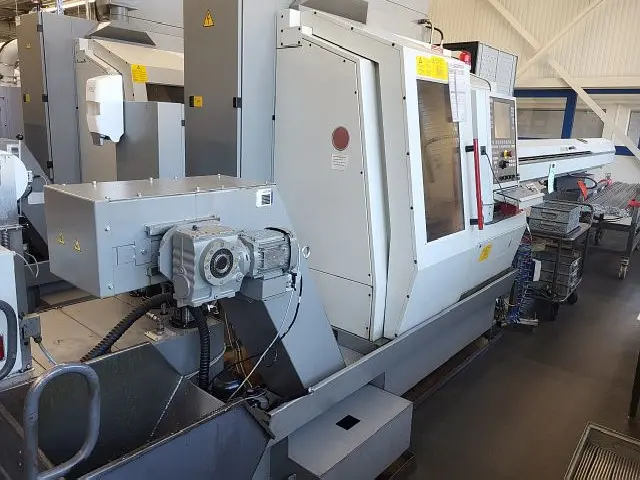

Прутковый токарный автомат продольного точения TRAUB TNL 18

"Прутковый токарный автомат продольного точения TRAUB TNL 18, г.в. 2011"

Объявление # P0224533
Тип: Прутковый токарный автомат продольного точения
Производитель: TRAUB
Год выпуска: 2011
Модель/Тип: TNL 18
Состояние: Бу
Наработка: h
Реферальный номер: p225515
  • ID: P0224533
  • 140
  • 2025-03-24
  • Цена
  • по запросу
Связаться через Telegram Telegram
Связаться через WhatsApp WhatsApp


CONTROLS

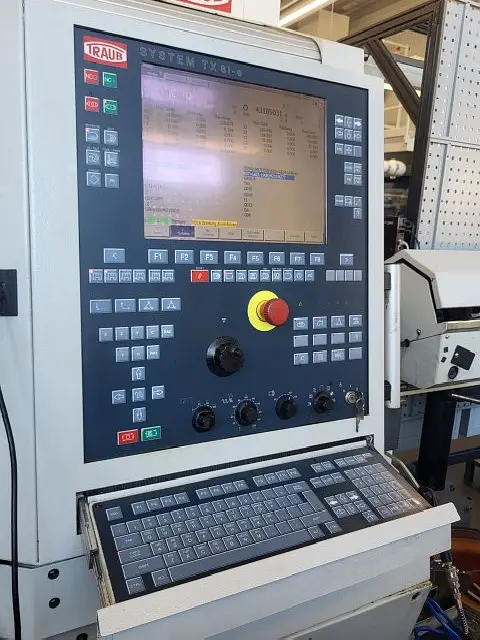

  CNC controls MITSUBISHI

BASIC FUNCTIONS
  number of spindles: 2
  number of turrets: 2
  number of c-axes: 2
  number of y-axes: 1

WORKING RANGE TURNING
  turning diameter (max): 20 mm
  bar diameter (max): 18 mm
  worpiece length max.: 200 mm

MAIN SPINDLE
  spindle revolutions (max): 12000 /min
  spindle diameter: 20 mm
  spindle bore diameter: 18 mm
  c-axis: yes

COUNTER SPINDLE
  spindle revolutions (max): 12000 /min
  c-axis: yes

X/Z SLIDE
  Z-axis travel: 250 mm
  X-axis travel: 120 mm
  Y-axis travel: 65 mm
  number of tool positions (total): 8

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

ATTACHMENTS (TURNING)
  bar feeder: yes
  bar magazine: yes
  chip conveyor: yes
  coolant unit: yes
  band filtration unit: yes
  through spindle coolant attachment: yes
  hydraulic system: yes
  European CE standards: yes


Parts conveyor for parts removal
- Parts gripper
- Coolant tank with belt filter
- High-pressure pumps approx. 50 bar for external and internal mould cooling
- Additional high-pressure pump up to 140 bar for internal mould cooling
- Bar feeder FMB Minimag 20 with Ø20 channel and Ø16 interchangeable channel
- Chip conveyor (cable drag)
- Kraft & Bauer CO² extinguishing system
