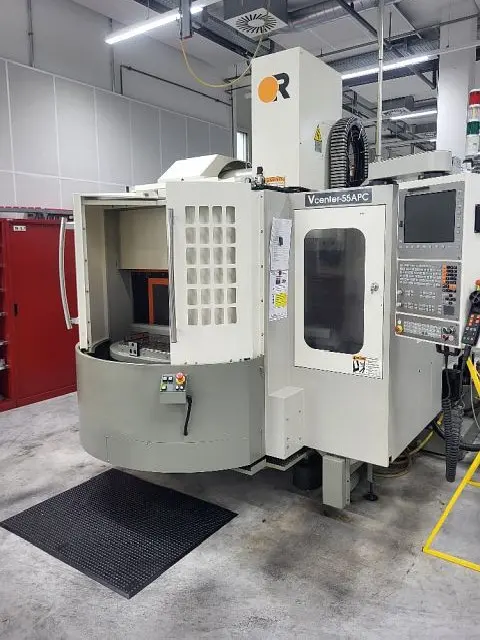

Обрабатывающий центр - вертикальный VICTOR VCENTER-55 APC

CONTROLS

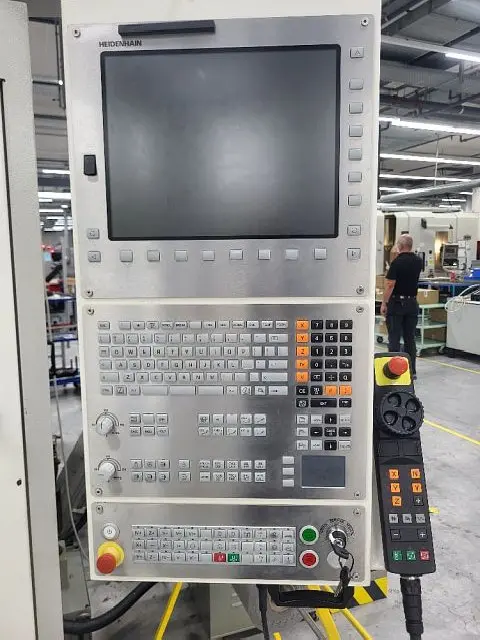

  CNC controls HEIDENHAIN TNC 530

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  X-axis travel: 550 mm
  Y-axis travel: 460 mm
  Z-axis travel: 460 mm

TABLE
  table surface (left-right): 800 mm
  table surface (front-back): 460 mm
  workpiece load (max): 300 kg

SPINDLE / HEAD
  tool fixture: ISO SK 40
  spindle revolutions (max): 12000 /min

AXIS DRIVES
  rapid traverse X: 30000 mm/min
  rapid traverse Y: 30000 mm/min
  rapid traverse Z: 24000 mm/min

TOOL MAGAZINE
  number of positions: 24

AUTOMATIC WORKLOAD EQUIPMENT
  number of pallets: 2

ELECTRICAL SPECIFICATIONS
  mains power supply: 30 kVA
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 2400 mm
  space requirements -front/back-: 2000 mm
  total height: 2500 mm
  total weight approx.: 4000 kg

ATTACHMENTS
  chip conveyor: yes
  coolant unit: yes
  closed cabin: yes
  European CE standards: yes
