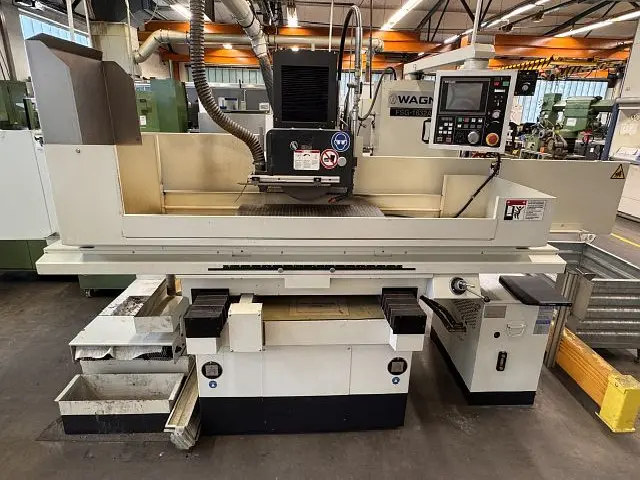

WORKING RANGE SURFACE GRINDING
grinding length: 810 mm
grinding width: 405 mm
distance of axis of horizontal spindle - clamping surface (max.): 630 mm
TABLE (SURFACE GRINDING)
table surface (left-right): 800 mm
table surface (front-back): 400 mm
magnetic table: yes

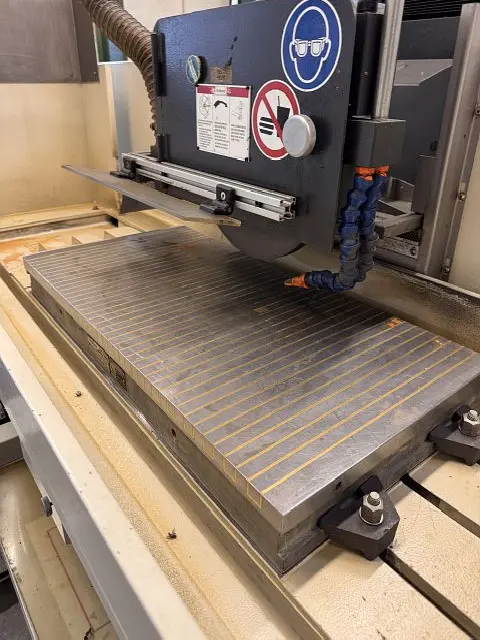

MAGNETIC TABLE
length: 800 mm
width: 400 mm
SPINDLESTOCK GRINDING SPINDLE
spindle revolutions (max): 1450 /min
drive power: 3.7 kW
GRINDING TOOL
type of grinding tool: wheel
diameter (max): 355 mm
borehole: diameter: 127 mm
width: 50 mm
AXIS DRIVES
traverse velocity X (min): 5000 mm/min
traverse velocity X (max): 25000 mm/min
traverse velocity Z (max): 2900 mm/min

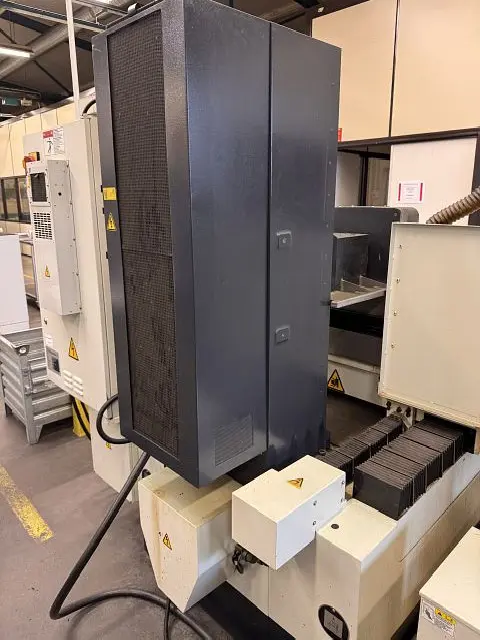

ELECTRICAL SPECIFICATIONS
mains power supply: 8 kVA
DIMENSIONS / WEIGHTS
space requirements -left/right-: 3540 mm
space requirements -front/back-: 1733 mm
total height: 2080 mm
total weight approx.: 3600 kg
ATTACHMENTS (GRINDING)
Flange of grinding wheel: yes
Grinding discs, number: 1
balancing attachment: no

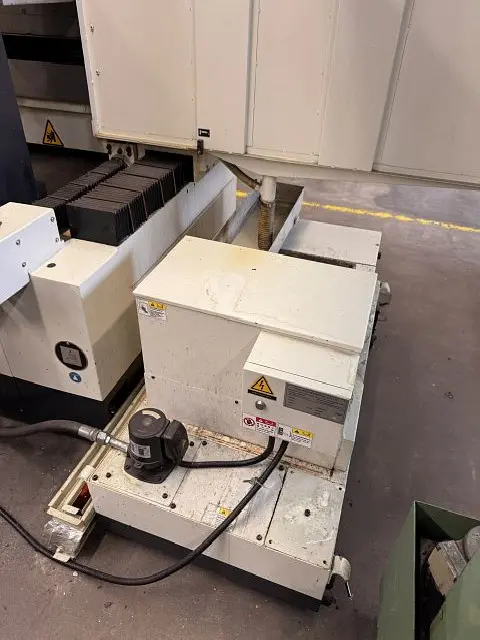

coolant unit: yes
Machine has no dressing unit
