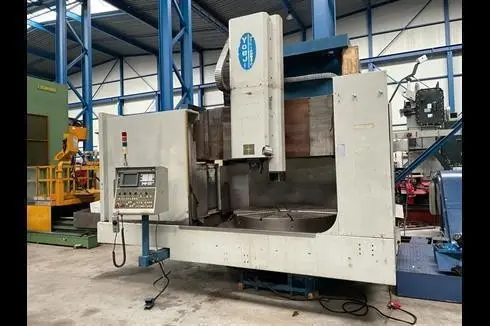

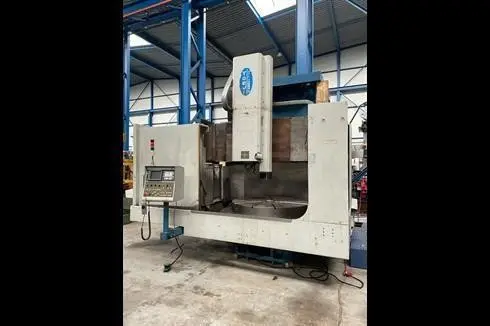

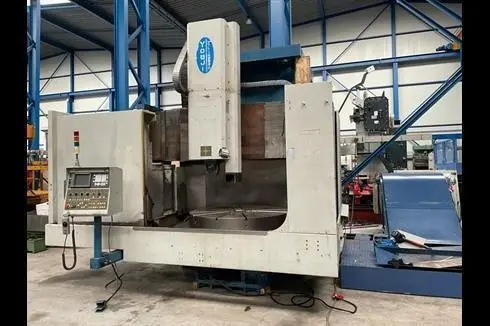

Карусельно-токарный станок одностоечный You-Ji VTL 1600 ATC Fanuc, г.в. 2003

Anzahl Werkzeugposition: 12
Anzahl Paletten: 1
Lathes  / Vertical turret lathes

Brand: You Ji

 Type: VTL 1600 ATC

CNC brand: Fanuc

CNC model: Series 18-T

Year of make: 2003-01

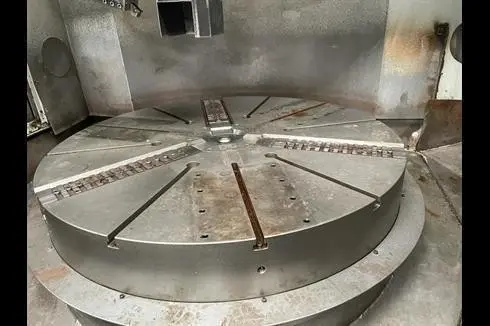

Jawplate diameter: 1.600 mm ø

Maximum turning diameter : 1.800 mm ø

Turning height: 1.200 mm

X: -800  +1.015 mm

Z: 900 mm

Rapid traverse X-Z: 0 - 2 m/min

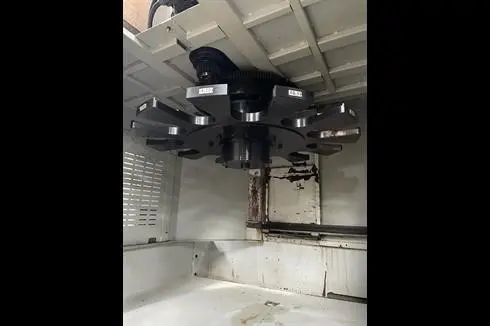

Tool changer: 12

Maximum table load: 8.000 kg

Machine dimensions (lxwxh): 5.850 x 4.510 x 5.400  mm

Machine weight: 24.000 kg



Spindle holder: MAS BT50



For additional information, please refer to the PDF file



Serial number: 02VTL16T0656

Single column

CNC controlled

3-jaw chuck



Machine nr.: D825A
