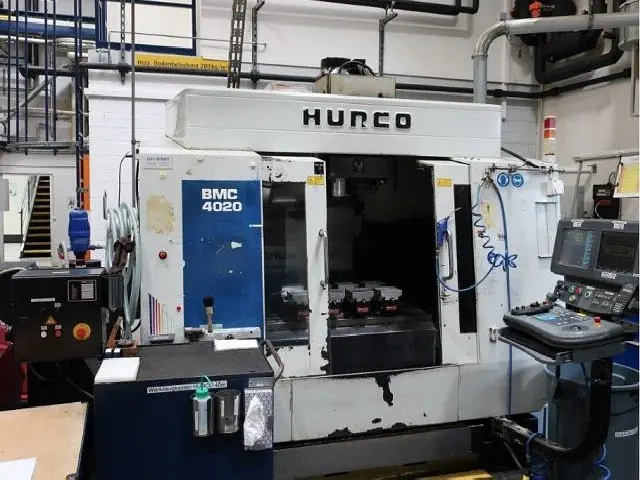

Фрезерно-расточный станок HURCO BMC 4020, г.в. 2000

CONTROLS
  CNC controls HURCO ULTIMAX

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  .. among of them simultaneous CNC axes: 3
  X-axis travel: 1020 mm
  Y-axis travel: 510 mm
  Z-axis travel: 610 mm

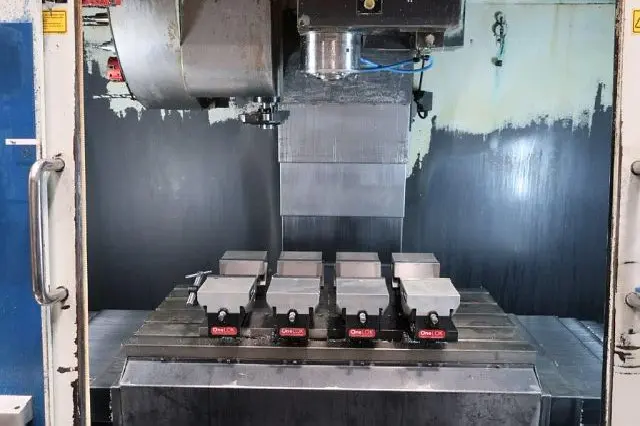

TABLE
  table surface (left-right): 1250 mm
  table surface (front-back): 510 mm
  workpiece load (max): 1000 kg

SPINDLE / HEAD
  spindle revolutions (max): 8000 /min
  tool fixture: ISO SK 40

AXIS DRIVES
  rapid traverse: 35000 mm/min

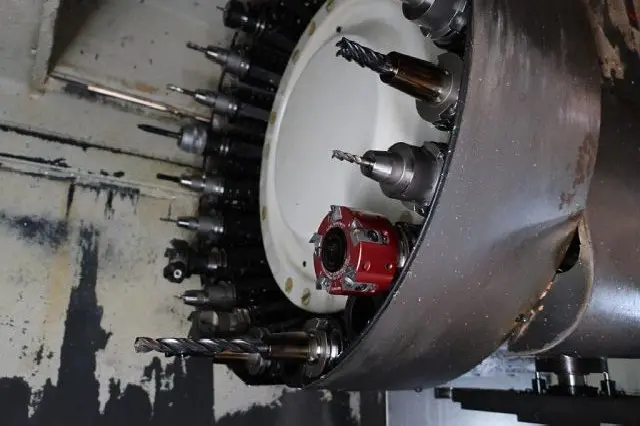

TOOL MAGAZINE
  number of positions: 24
  tool diameter max.: 80 mm

ELECTRICAL SPECIFICATIONS
  total power consumption: 15 kW
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  total weight approx.: 4800 kg
