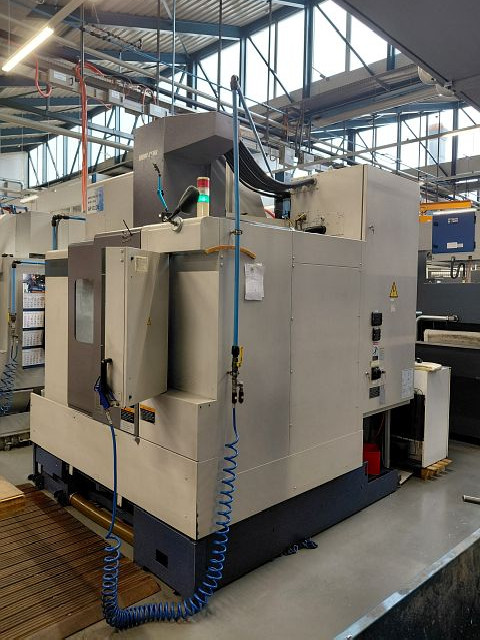

Обрабатывающий центр - вертикальный MORI SEIKI SV 503

CONTROLS
  CNC controls MORI SEIKI MSX 501 III

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  X-axis travel: 800 mm
  Y-axis travel: 510 mm
  Z-axis travel: 460 mm

TABLE
  table surface (left-right): 1320 mm
  table surface (front-back): 600 mm

SPINDLE / HEAD
  spindle revolutions (max): 10000 /min
  tool fixture: ISO BT 40

TOOL MAGAZINE
  number of positions: 30

ELECTRICAL SPECIFICATIONS
  mains voltage: 400 V
  mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 2400 mm
  space requirements -front/back-: 2600 mm
  total height: 2800 mm
  total weight approx.: 6800 kg

ATTACHMENTS
  chip conveyor: yes
  coolant unit: yes
  closed cabin: yes
